TC297TA128F300SBCKXUMA1 - Infineon

Description: MCU 32-bit TriCore RISC 8MB Flash 3.3V/5V Automotive 292-Pin LFBGA T/R

Download TC297TA128F300SBCKXUMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

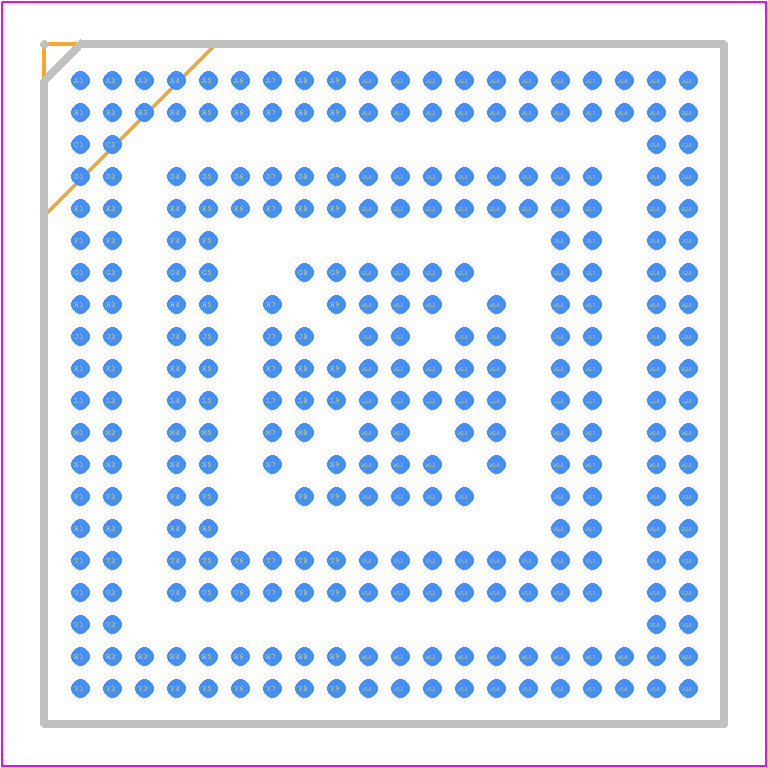

TC297TA128F300SBCKXUMA1 - Infineon PCB footprint - BGA - BGA - LF-BGA-292-6
click to zoom
3D Models
TC297TA128F300SBCKXUMA1 - Infineon  - 3D model - BGA - LF-BGA-292-6
click to zoom

TC297TA128F300SBCKXUMA1 Details

  • Manufacturer Part Number:

    TC297TA128F300SBCKXUMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFBGA-292

  • ECCN Code:

    3A991.a.2

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    33 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    8.2

  • Has ADC:

    YES

  • Additional Feature:

    84-Ch ADC available;10-Ch digital-sigma ADC also available

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • CPU Family:

    TC297

  • Clock Frequency-Max:

    40 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • Format:

    FLOATING POINT

  • Integrated Cache:

    YES

  • JESD-30 Code:

    S-PBGA-B292

  • JESD-609 Code:

    e2

  • Length:

    17 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of DMA Channels:

    128

  • Number of Serial I/Os:

    16

  • Number of Terminals:

    292

  • Number of Timers:

    3

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    NO

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA292,20X20,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • RAM (bytes):

    647168

  • ROM (words):

    8388608

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.7 mm

  • Speed:

    300 MHz

  • Supply Current-Max:

    950 mA

  • Supply Voltage-Max:

    1.43 V

  • Supply Voltage-Min:

    1.17 V

  • Supply Voltage-Nom:

    1.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin/Silver (Sn/Ag)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    17 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

TC297TA128F300SBCKXUMA1 Frequently Asked Questions (FAQs)

  • The TC297TA128F300SBCKXUMA1 can operate in a temperature range of -40°C to 125°C.
  • The clock settings can be configured using the Clock Control Unit (CCU) module, which allows for flexible clock generation and distribution. Refer to the user manual for detailed configuration options.
  • The maximum frequency of the CPU is 300 MHz.
  • The TC297TA128F300SBCKXUMA1 has 128 KB of flash memory.
  • The TC297TA128F300SBCKXUMA1 has a range of communication interfaces, including SPI, UART, I2C, and CAN.
