Toshiba provides a recommended PCB layout in the application note 'TC35679FSG-002 PCB Layout Guide' (document number: TC35679FSG-002_AN001). It's essential to follow this guide to ensure optimal performance, especially for high-frequency signals.
A reliable POR circuit can be implemented using an external voltage detector, such as the TLV7031, connected to the VCC pin of the TC35679FSG-002. This ensures a clean power-on reset and prevents unwanted resets during power-up.
Although the datasheet specifies an operating temperature range of -40°C to 85°C, Toshiba recommends derating the device's performance at temperatures above 70°C to ensure reliable operation.
Yes, the TC35679FSG-002 can operate with a 3.3V power supply, but it's essential to ensure that the input voltage to the device remains within the recommended range of 2.7V to 3.6V. Additionally, the device's performance may be affected at lower voltages, so thorough testing is recommended.
Toshiba provides a BLE troubleshooting guide (document number: TC35679FSG-002_AN002) that covers common issues and solutions. It's recommended to consult this guide before contacting Toshiba support.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TC35679FSG-002 Overview

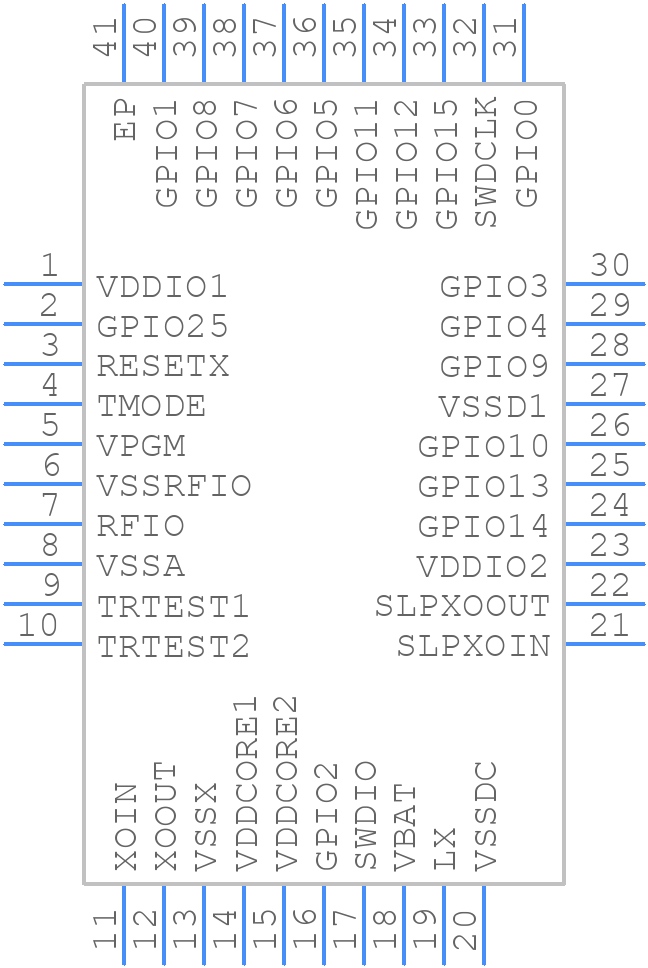

Use the download button to access the TC35679FSG-002 schematic symbol, PCB footprint, and 3D model.
