Infineon provides a reference design and layout guidelines in their application notes and evaluation boards. It's recommended to follow these guidelines to ensure optimal thermal performance and minimize electromagnetic interference (EMI). Additionally, a thermal pad and heat sink can be used to improve heat dissipation.
Infineon recommends using a low-ESR capacitor (e.g., 100nF) close to the device's power pins to decouple the supply voltage. Additionally, a bulk capacitor (e.g., 10uF) should be placed near the power source to filter out noise. A well-regulated power supply and a stable clock signal are also essential to prevent oscillations.
The TC366DP64F300SAAKXUMA1 is rated for operation up to 125°C. However, high temperatures can affect the device's performance, reliability, and lifespan. It's essential to consider the thermal budget, ensure proper cooling, and follow Infineon's guidelines for high-temperature operation to prevent thermal runaway and reduce the risk of device failure.
Infineon provides a secure boot process implementation guide and a cryptographic library for the TC366DP64F300SAAKXUMA1. It's recommended to follow these guidelines and use the provided tools to implement a secure boot process that verifies the firmware integrity and authenticity. Additionally, a secure key management strategy should be employed to protect the device's cryptographic keys.
Infineon provides a range of debugging tools, including the DAVE 4 development environment and the Infineon Toolbox. It's recommended to use these tools to debug and troubleshoot the device, as well as to leverage the device's built-in debug features, such as the debug interface and trace capabilities. Additionally, a systematic approach to debugging, including isolating issues and using logging and tracing mechanisms, can help identify and resolve problems more efficiently.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TC366DP64F300SAAKXUMA1 Overview

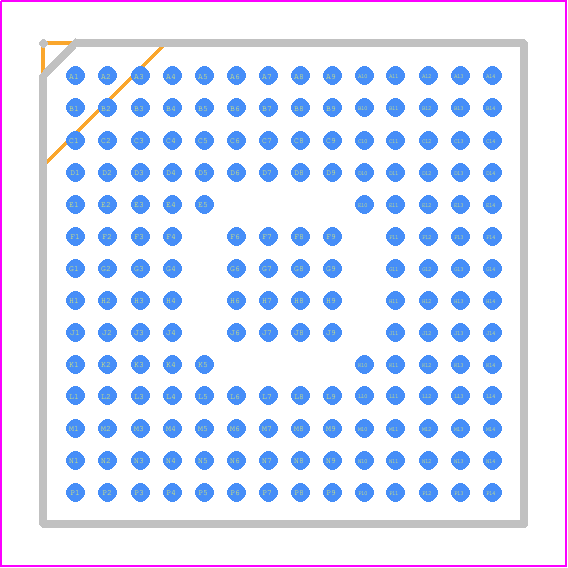

Use the download button to access the TC366DP64F300SAAKXUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TC366,
or try a keyword search, such as Microcontrollers
