TC367DP64F300SAAKXUMA1 - Infineon

Description: 32-bit Microcontroller

Download TC367DP64F300SAAKXUMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TC367DP64F300SAAKXUMA1 - Infineon - PCB symbol
click to zoom
PCB Footprints

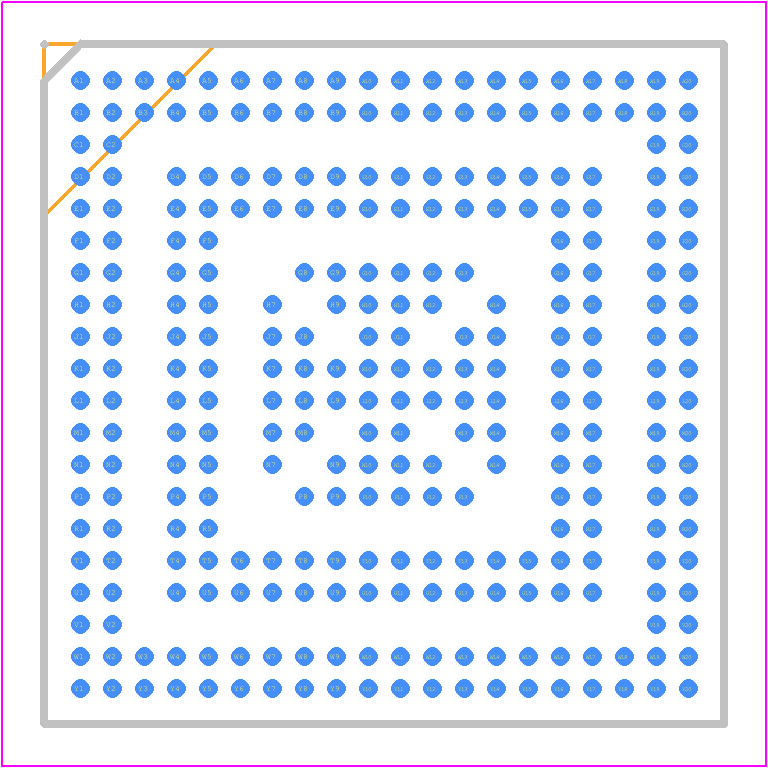

TC367DP64F300SAAKXUMA1 - Infineon PCB footprint - BGA - BGA - LF-BGA-292-6
click to zoom
3D Models
TC367DP64F300SAAKXUMA1 - Infineon - 3D model - BGA - LF-BGA-292-6
click to zoom

TC367DP64F300SAAKXUMA1 Details

  • Manufacturer Part Number:

    TC367DP64F300SAAKXUMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFBGA-292

  • Country Of Origin:

    Germany, Mainland China, Singapore, South Korea, Taiwan

  • ECCN Code:

    3A991.a.2

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    53 Weeks, 1 Day

  • Date Of Intro:

    2020-01-02

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    8

  • Has ADC:

    YES

  • Additional Feature:

    IT ALSO OPERATES AT 5V NOM SUPPLY

  • Bit Size:

    32

  • Clock Frequency-Max:

    160 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • JESD-30 Code:

    S-PBGA-B292

  • JESD-609 Code:

    e2

  • Length:

    17 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    292

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.7 mm

  • Speed:

    300 MHz

  • Supply Voltage-Max:

    3.63 V

  • Supply Voltage-Min:

    2.97 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin/Silver (Sn/Ag)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    17 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER
