TC4-14+ - Mini-Circuits

Description: Surface Mount RF Transformers

Download TC4-14+ Model

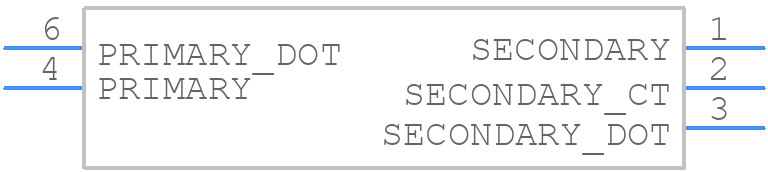

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TC4-14+ - Mini-Circuits PCB footprint - Other - Other - TC4-14+-1
click to zoom
3D Models
TC4-14+ - Mini-Circuits  - 3D model - Other - TC4-14+-1
click to zoom

TC4-14+ Details

  • Manufacturer Part Number:

    TC4-14+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    5.5

  • Additional Feature:

    OHMS RATIO IS 4, LENGTH AND HEIGHT DIM INCLUDE TERMINAL ALSO

  • Application:

    SIGNAL

  • Cut-off Frequency-Min:

    200 MHz

  • DC Unbalance Current-Max:

    30 mA

  • Height:

    4.06 mm

  • Insertion Loss:

    3 dB

  • JESD-609 Code:

    e3

  • Length:

    3.81 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    1

  • Operating Frequency-Max:

    1400000 kHz

  • Operating Frequency-Min:

    200000 kHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Packing Method:

    TR, 13 INCH

  • Power Rating:

    0.25 W

  • Primary Impedance:

    50 OHMS

  • Secondary Impedance:

    50 OHMS

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN OVER NICKEL

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    3.81 mm

TC4-14+ Frequently Asked Questions (FAQs)

  • The TC4-14+ can operate from -40°C to +85°C, but it's recommended to derate the power handling by 1 dB for every 10°C above 50°C.
  • The TC4-14+ has a nominal impedance of 50 ohms. To impedance match, use a pi-network or a T-network with capacitors and inductors to achieve a conjugate match. Consult the Mini-Circuits application note AN-60-014 for more information.
  • The TC4-14+ can handle up to 1 watt of continuous wave (CW) input power. However, it's recommended to limit the input power to 0.5 watts for reliable operation.
  • Yes, the TC4-14+ can be used as a 4-way splitter or combiner. However, the insertion loss will be higher than the specified value, and the amplitude and phase balance may vary between ports.
  • Check for proper soldering and connections, ensure the device is properly biased, and verify the input power is within the recommended range. Use a spectrum analyzer or a network analyzer to diagnose issues with frequency response or impedance mismatch.
