TC4-1T+ - Mini-Circuits

Description: 1:4 CORE & WIRE Transformer, 0.5 - 300 MHz, 50Ω

Download TC4-1T+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

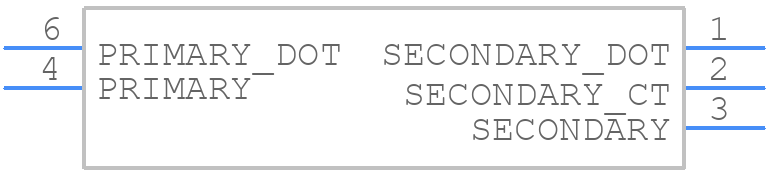

TC4-1T+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
TC4-1T+ - Mini-Circuits PCB footprint - Other - Other - TC4-1T+-2
click to zoom
3D Models
TC4-1T+ - Mini-Circuits - 3D model - Other - TC4-1T+-2
click to zoom

TC4-1T+ Details

  • Manufacturer Part Number:

    TC4-1T+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    5.5

  • Additional Feature:

    HEIGHT & LENGTH DIM INCLUDES TERMINALS ALSO; PACKING ALSO AVAILABLE IN 7 INCH REEL

  • Application:

    MATCHING

  • Cut-off Frequency-Min:

    0.5 MHz

  • DC Unbalance Current-Max:

    30 mA

  • Height:

    4.06 mm

  • Insertion Loss:

    2 dB

  • JESD-609 Code:

    e3

  • Length:

    3.81 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    1

  • Operating Frequency-Max:

    300000 kHz

  • Operating Frequency-Min:

    500 kHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Packing Method:

    TR, 13 INCH

  • Power Rating:

    0.25 W

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN OVER NICKEL

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    3.81 mm

TC4-1T+ Frequently Asked Questions (FAQs)

  • The TC4-1T+ can operate from -40°C to +85°C, but it's recommended to derate the power handling above 70°C.
  • Mini-Circuits provides a recommended PCB layout and impedance matching network in the application note AN-60-012. You can also use their online impedance matching tool.
  • The TC4-1T+ can handle up to 1W of input power, but it's recommended to limit the input power to 0.5W for optimal performance and reliability.
  • Yes, the TC4-1T+ can be used in switching applications, but it's recommended to limit the switching frequency to below 100 kHz to avoid overheating and ensure reliable operation.
  • Follow the recommended PCB layout and assembly guidelines, ensure proper thermal management, and avoid exceeding the maximum ratings for voltage, current, and power.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TC4-1T+ Overview

Use the download button to access the TC4-1T+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TC4-1, or try a keyword search, such as RF Transformers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
