TC4-1TX+ - Mini-Circuits

Description: Audio Transformers / Signal Transformers TC XFMR / SURF MT / HAT RoHS

Download TC4-1TX+ Model

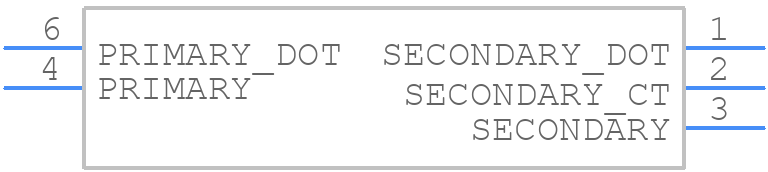

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TC4-1TX+ - Mini-Circuits PCB footprint - Other - Other - TC4-1TX+-2
click to zoom
3D Models
TC4-1TX+ - Mini-Circuits  - 3D model - Other - TC4-1TX+-2
click to zoom

TC4-1TX+ Details

  • Manufacturer Part Number:

    TC4-1TX+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Application:

    MATCHING

  • Cut-off Frequency-Max:

    300 MHz

  • Cut-off Frequency-Min:

    0.5 MHz

  • DC Unbalance Current-Max:

    30 mA

  • Height:

    4.06 mm

  • Insertion Loss:

    2 dB

  • Length:

    3.81 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    1

  • Operating Frequency-Max:

    300000 kHz

  • Operating Frequency-Min:

    500 kHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Packing Method:

    TR, 13 INCH

  • Power Rating:

    0.25 W

  • Surface Mount:

    YES

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    3.81 mm

TC4-1TX+ Frequently Asked Questions (FAQs)

  • A good grounding scheme is crucial for the TC4-1TX+. It's recommended to use a solid ground plane, and to connect the device's ground pins to the ground plane using vias. The input and output tracks should be kept short and away from other noisy signals. A 4-layer PCB with a dedicated ground plane is recommended.
  • The TC4-1TX+ requires a positive bias voltage (Vcc) of 5V ± 0.5V. Ensure that the bias voltage is clean and regulated, and that the device is properly decoupled using capacitors. A 10uF capacitor in parallel with a 100nF capacitor is recommended for decoupling.
  • The TC4-1TX+ can handle input powers up to +10dBm. Exceeding this limit may cause compression or damage to the device. It's recommended to use an attenuator or a limiter to prevent overdrive.
  • The TC4-1TX+ is a broadband amplifier, but it can be optimized for a specific frequency range by using external matching networks. Use a network analyzer to measure the device's S-parameters, and then design a matching network to optimize the gain and return loss for the desired frequency range.
  • The TC4-1TX+ is specified to operate from -40°C to +85°C. However, the device's performance may degrade at extreme temperatures. Ensure that the device is operated within the recommended temperature range for optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TC4-1TX+ Overview

Use the download button to access the TC4-1TX+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TC4-1, or try a keyword search, such as RF Transformers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
