TC4-1W-7ALN+ - Mini-Circuits

Description: Audio Transformers / Signal Transformers RF Transformer SMT, 5 - 500 MHz, 50 ohms

Download TC4-1W-7ALN+ Model

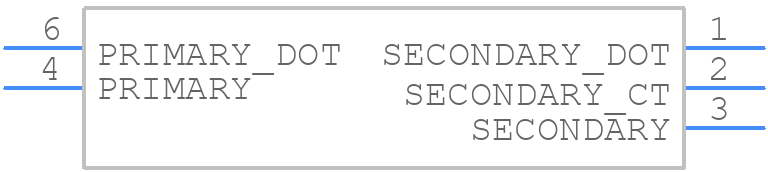

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TC4-1W-7ALN+ - Mini-Circuits PCB footprint - Other - Other - TC4-1W-7ALN+-1
click to zoom
3D Models
TC4-1W-7ALN+ - Mini-Circuits  - 3D model - Other - TC4-1W-7ALN+-1
click to zoom

TC4-1W-7ALN+ Details

  • Manufacturer Part Number:

    TC4-1W-7ALN+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Application:

    MATCHING

  • Cut-off Frequency-Min:

    5 MHz

  • DC Unbalance Current-Max:

    150 mA

  • Height:

    4.06 mm

  • Insertion Loss:

    3 dB

  • Length:

    3.81 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    1

  • Operating Frequency-Max:

    500000 kHz

  • Operating Frequency-Min:

    5000 kHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, 7/13 INCH

  • Power Rating:

    0.25 W

  • Surface Mount:

    YES

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    3.81 mm

TC4-1W-7ALN+ Frequently Asked Questions (FAQs)

  • The maximum operating temperature for the TC4-1W-7ALN+ is 85°C, but it's recommended to derate the power handling by 1 dB for every 10°C above 50°C to ensure reliable operation.
  • While the TC4-1W-7ALN+ is not hermetically sealed, it can operate in humid environments. However, it's recommended to follow proper PCB design and assembly practices to prevent moisture ingress. Additionally, consider applying a conformal coating to protect the device.
  • To ensure proper biasing, follow the recommended biasing circuit shown in the datasheet. Make sure to use a stable voltage source and decouple the bias lines with capacitors to prevent noise and oscillations.
  • For optimal performance, use a multi-layer PCB with a solid ground plane. Place the device near the edge of the board to minimize signal reflections. Use short, direct traces for the RF signals and decouple the bias lines with capacitors to ground. Avoid using vias under the device to prevent signal coupling.
  • Yes, the TC4-1W-7ALN+ can be used in a push-pull or balanced configuration to improve output power and reduce distortion. However, this requires careful design and layout to ensure proper phasing and impedance matching.
