TC4011BP(F) - Toshiba

Description: IC, CMOS, 4000B series logic

Download TC4011BP(F) Model

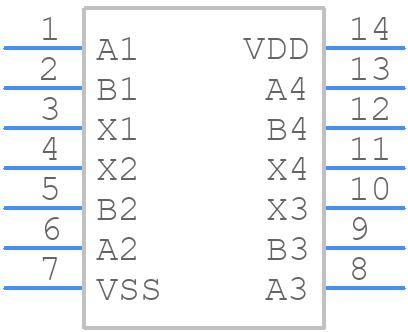

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

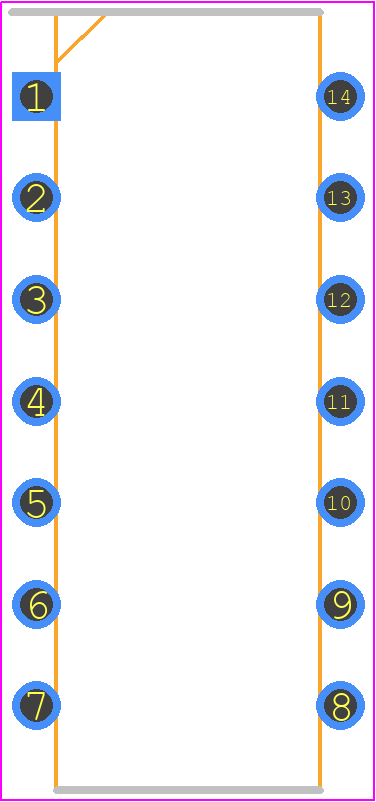

TC4011BP(F) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP14-P-300-2.54_1
click to zoom
3D Models
TC4011BP(F) - Toshiba  - 3D model - Dual-In-Line Packages - DIP14-P-300-2.54_1
click to zoom

TC4011BP(F) Details

  • Manufacturer Part Number:

    TC4011BP(F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-14

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • Family:

    4000/14000/40000

  • JESD-30 Code:

    R-PDIP-T14

  • Length:

    19.25 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    NAND GATE

  • Max I(ol):

    0.012 A

  • Number of Functions:

    4

  • Number of Inputs:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Packing Method:

    TUBE

  • Prop. Delay@Nom-Sup:

    200 ns

  • Propagation Delay (tpd):

    200 ns

  • Qualification Status:

    Not Qualified

  • Schmitt Trigger:

    NO

  • Seated Height-Max:

    4.45 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

TC4011BP(F) Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TC4011BP(F) is 4.5V to 15V.
  • To ensure proper power-on and power-off, it is recommended to use a capacitor between the VCC pin and GND pin, and to slowly ramp up the power supply voltage to prevent latch-up.
  • The maximum frequency of operation for the TC4011BP(F) is 10MHz.
  • The input impedance of the TC4011BP(F) is high, so it can be driven by a wide range of logic families. The output impedance is relatively low, so it can drive a wide range of loads.
  • The maximum power dissipation of the TC4011BP(F) is 500mW.
