The recommended operating voltage range for the TC4013BP is 4.5V to 15V.
To ensure proper power-on and power-off, the VCC pin should be ramped up and down slowly (typically within 1ms to 10ms) to prevent latch-up or other unintended behavior.
The maximum clock frequency supported by the TC4013BP is 10MHz.
The asynchronous reset input (MR) should be asserted low for at least 10ns to ensure proper reset. It's also recommended to synchronize the reset signal with the clock signal to prevent metastability.
The maximum capacitance allowed on the clock input (CLK) is 100pF. Exceeding this value may affect the clock signal integrity.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TC4013BP Overview

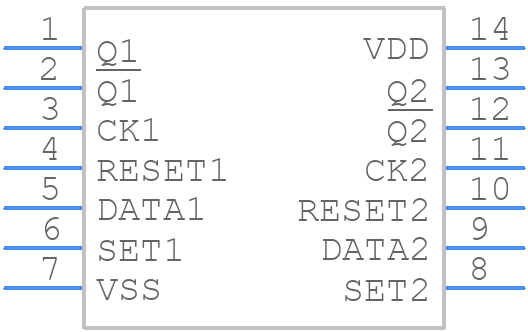

Use the download button to access the TC4013BP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TC401,
or try a keyword search, such as FF/Latches
