TC4050BF - Toshiba

Description: TC4049B, TC4050B contain six circuits of buffers. TC4049B is inverter type and TC4050B is non-inverter type. Since one TTL or DTL can be directly driven having large output current, these are useful for interfacing from CMOS to TTL or DTL. As voltage up to VSS + 18 volts can be applied to the input regardless of VDD, these can be also used as the level converter IC’s which converts CMOS logical circuits of 15 volts or 10 volts system to CMOS/TTL logical circuits of 5 volts system. Ideal switching ch

Download TC4050BF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

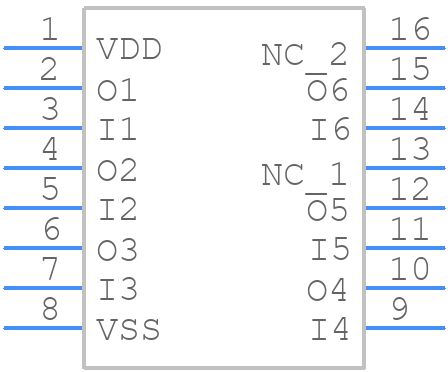

TC4050BF - Toshiba - PCB symbol
click to zoom
PCB Footprints
TC4050BF - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - SOP16-P-300-1.27A
click to zoom
3D Models
TC4050BF - Toshiba - 3D model - Small Outline Packages - SOP16-P-300-1.27A
click to zoom

TC4050BF Details

  • Manufacturer Part Number:

    TC4050BF

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-16

  • Pin Count:

    16

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    5

  • Family:

    4000/14000/40000

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    10.3 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    BUFFER

  • Max I(ol):

    0.048 A

  • Number of Functions:

    6

  • Number of Inputs:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    130 ns

  • Propagation Delay (tpd):

    130 ns

  • Qualification Status:

    Not Qualified

  • Schmitt Trigger:

    NO

  • Seated Height-Max:

    1.9 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

TC4050BF Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TC4050BF is 3.5V to 6.0V, although it can operate up to 7.0V with reduced performance.
  • To ensure stable output voltage, it's recommended to use a 10uF or larger output capacitor, and to keep the input voltage above the minimum specified voltage (3.5V).
  • The maximum output current capability of the TC4050BF is 1.5A, but it's recommended to keep the output current below 1.2A for stable operation.
  • To protect the TC4050BF from overheating, ensure good thermal design, use a heat sink if necessary, and keep the device within the recommended operating temperature range (-40°C to 85°C).
  • While the TC4050BF can operate up to 85°C, its performance may degrade above 70°C. For high-temperature applications, consider using a more suitable device or taking additional thermal design measures.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TC4050BF Overview

Use the download button to access the TC4050BF schematic symbol, PCB footprint, and 3D model.
