TC4052BFELNF - Toshiba

Description: Encoders, Decoders, Multiplexers & Demultiplexers CMOS Logic IC 6ns 3.0 to 18V

Download TC4052BFELNF Model

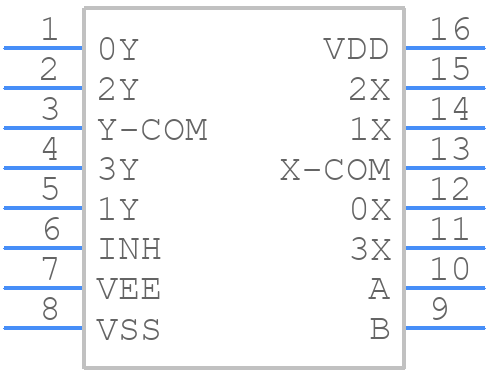

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TC4052BFELNF - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - SOP16-P-300-1.27A
click to zoom
3D Models
TC4052BFELNF - Toshiba  - 3D model - Small Outline Packages - SOP16-P-300-1.27A
click to zoom

TC4052BFELNF Details

  • Manufacturer Part Number:

    TC4052BFELNF

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-16

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    6.15

  • Additional Feature:

    ALSO AVAILABLE IN LEADED PACKAGE SOP16-P-300-1.27

  • Analog IC - Other Type:

    DIFFERENTIAL MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    10.3 mm

  • Normal Position:

    NO

  • Number of Channels:

    4

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    50 dB

  • On-state Resistance Match-Nom:

    10 Ω

  • On-state Resistance-Max (Ron):

    1200 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    1.9 mm

  • Supply Current-Max (Isup):

    0.6 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    450 ns

  • Switch-on Time-Max:

    380 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

TC4052BFELNF Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TC4052BFELNF is 2.7V to 5.5V.
  • To ensure the stability of the output voltage, it is recommended to use a 10uF or larger ceramic capacitor for the output capacitor (COUT) and a 1uF or larger ceramic capacitor for the input capacitor (CIN).
  • The TC4052BFELNF can provide a maximum output current of 500mA.
  • The thermal shutdown protection feature is activated when the junction temperature exceeds 150°C. To handle this, ensure good thermal design and heat dissipation, and consider using a heat sink if necessary.
  • The TC4052BFELNF is rated for operation up to 125°C. However, it is recommended to derate the output current and ensure good thermal design and heat dissipation to prevent overheating.
