TC4093BP(N,F) - Toshiba

Description: Toshiba TC4093BP(N,F), Quad 2-Input NAND Schmitt Trigger Logic Gate, 3 → 18 V, 14-Pin PDIP

Download TC4093BP(N,F) Model

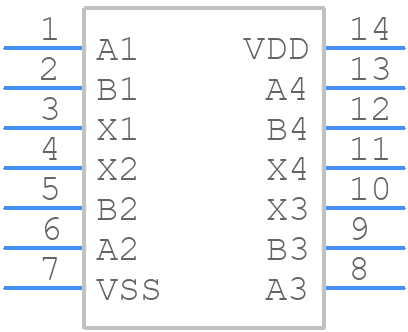

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TC4093BP(N,F) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP14-P-300-2.54
click to zoom
3D Models
TC4093BP(N,F) - Toshiba  - 3D model - Dual-In-Line Packages - DIP14-P-300-2.54
click to zoom

TC4093BP(N,F) Details

  • Manufacturer Part Number:

    TC4093BP(N,F)

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-14

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    5

  • Family:

    4000/14000/40000

  • JESD-30 Code:

    R-PDIP-T14

  • Length:

    19.25 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    NAND GATE

  • Max I(ol):

    0.015 A

  • Number of Functions:

    4

  • Number of Inputs:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Power Supply Current-Max (ICC):

    0.03 mA

  • Prop. Delay@Nom-Sup:

    260 ns

  • Propagation Delay (tpd):

    260 ns

  • Schmitt Trigger:

    YES

  • Seated Height-Max:

    4.45 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

TC4093BP(N,F) Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for TC4093BP is 3V to 18V.
  • To ensure the Schmitt trigger inputs are properly biased, connect a pull-up or pull-down resistor to the input pins, and ensure the input voltage is within the recommended operating range.
  • The maximum frequency of operation for TC4093BP is approximately 10 MHz.
  • To ensure proper operation, power up the VCC pin before applying any input signals, and power down the VCC pin after removing all input signals.
  • The maximum output current for TC4093BP is approximately 20 mA per output pin.
