TC4094BP - Toshiba

Description: Serial In Parallel Out, 4000/14000/40000 Series, 8-Bit, Right Direction, True Output, CMOS, PDIP16

Download TC4094BP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

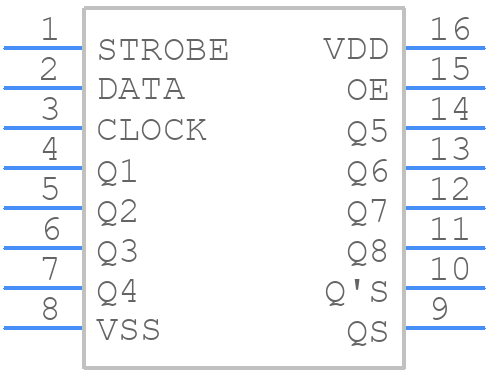

TC4094BP - Toshiba - PCB symbol
click to zoom
PCB Footprints
TC4094BP - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP16-P-300-2.54A
click to zoom
3D Models
TC4094BP - Toshiba - 3D model - Dual-In-Line Packages - DIP16-P-300-2.54A
click to zoom

TC4094BP Details

  • Manufacturer Part Number:

    TC4094BP

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    0.300 INCH, 2.54 MM PITCH, LEAD FREE, PLASTIC, DIP-16

  • Pin Count:

    16

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    4.5

  • Count Direction:

    RIGHT

  • Family:

    4000/14000/40000

  • JESD-30 Code:

    R-PDIP-T16

  • Length:

    19.25 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    SERIAL IN PARALLEL OUT

  • Max Frequency@Nom-Sup:

    1250000 Hz

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Propagation Delay (tpd):

    840 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.45 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trigger Type:

    POSITIVE EDGE

  • Width:

    7.62 mm

  • fmax-Min:

    16 MHz

TC4094BP Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the TC4094BP is 10 MHz, but it can be operated at higher frequencies with proper signal integrity and layout considerations.
  • To ensure reliable operation in high-temperature environments, it is recommended to follow proper thermal management practices, such as providing adequate heat sinking and airflow, and derating the device's power consumption according to the datasheet's thermal derating curve.
  • Yes, the TC4094BP can be used in a 3.3V system, but the input voltage thresholds and output voltage levels may not be compatible with 3.3V logic levels. It is recommended to use level translators or voltage dividers to ensure proper signal integrity.
  • It is recommended to follow a controlled power-up and power-down sequence to prevent latch-up and ensure reliable operation. The datasheet provides guidelines for power-up and power-down sequencing, and it is recommended to follow these guidelines carefully.
  • The recommended layout and routing for the TC4094BP involves keeping the signal traces short and direct, avoiding vias and layer changes, and providing adequate decoupling capacitors to reduce noise and ringing. It is also recommended to follow good PCB design practices, such as using a solid ground plane and avoiding parallel signal traces.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TC4094BP Overview

Use the download button to access the TC4094BP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TC409, or try a keyword search, such as Shift Registers
