The maximum voltage rating for the input pins (IN+ and IN-) is 7V, which is the absolute maximum rating. However, for normal operation, the input voltage should be limited to VCC + 0.3V to ensure proper operation.
To ensure the output stage is properly biased, make sure to connect the output pins (OUT+ and OUT-) to a load impedance that is within the recommended range (e.g., 10 ohms to 100 ohms). Also, ensure that the output voltage swing is within the recommended range (e.g., 0V to VCC - 1.5V).
For optimal performance, it is recommended to follow good PCB layout and routing practices, such as keeping the input and output traces short and separate, using a solid ground plane, and minimizing parasitic inductance and capacitance. Additionally, place the device close to the load and use a low-ESR capacitor (e.g., 10uF) between VCC and GND to filter out noise and ripple.
To handle thermal considerations, ensure good heat dissipation by providing adequate airflow, using a heat sink if necessary, and keeping the device away from other heat sources. The TC4427VPA has a thermal shutdown feature that will turn off the device if the junction temperature exceeds 150°C. Monitor the device temperature and adjust the layout and thermal management accordingly.
The recommended input signal frequency range for the TC4427VPA is up to 10 MHz. However, the device can operate at higher frequencies with some degradation in performance. For frequencies above 10 MHz, consult the datasheet for specific guidance and consider using a different device if necessary.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TC4427VPA Overview

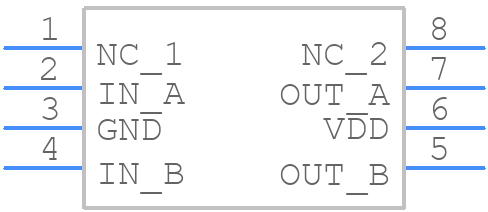

Use the download button to access the TC4427VPA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TC442,
or try a keyword search, such as MOSFET Drivers
About Microchip
Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
