Microchip recommends following a 4-layer PCB stackup with a solid ground plane, and using a star-connection for the power supply lines. Additionally, keep the high-frequency signals away from the analog signals, and use a common mode choke or ferrite bead to filter the power supply lines.
Follow the recommended biasing and configuration guidelines in the datasheet, and ensure that the input voltage is within the specified range. Also, make sure to decouple the power supply lines with capacitors and use a voltage regulator if necessary.
The maximum current that the TC4432VPA can handle is 1.5A per channel. To calculate the power dissipation, use the formula: Pd = (Vcc x Icc) + (Rds(on) x Iout^2), where Vcc is the input voltage, Icc is the quiescent current, Rds(on) is the on-state resistance, and Iout is the output current.
Use a voltage regulator to regulate the input voltage, and add overvoltage protection devices such as TVS diodes or zener diodes to protect against voltage spikes. For overcurrent protection, use a current sense resistor and a comparator to detect overcurrent conditions, and add a fuse or a PTC resettable fuse to disconnect the power supply in case of an overcurrent event.
Use a heat sink or a thermal pad to dissipate heat from the device. Calculate the junction temperature using the formula: Tj = Ta + (Pd x Rthja), where Ta is the ambient temperature, Pd is the power dissipation, and Rthja is the junction-to-ambient thermal resistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TC4432VPA Overview

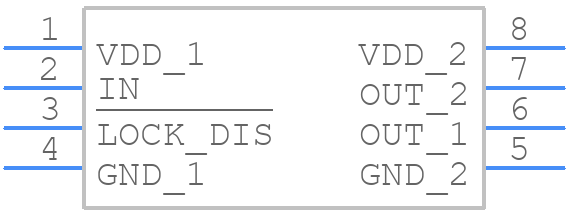

Use the download button to access the TC4432VPA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TC443,
or try a keyword search, such as MOSFET Drivers
