- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for TC4468COE
- Part Number TC4468COE
- Manufacturer Microchip
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - 16-Lead(SO) SOIC
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
TC4468COE Details
-
Manufacturer Part Number:
TC4468COE
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
SOIC
-
Package Description:
SOIC-16
-
Pin Count:
16
-
Manufacturer Package Code:
SOIC-16
-
Country Of Origin:
Philippines
-
ECCN Code:
EAR99
-
HTS Code:
8541.29.00.95
-
Factory Lead Time:
6 Weeks
TC4468COE Frequently Asked Questions (FAQs)
-
Microchip recommends following good PCB design practices, such as separating analog and digital grounds, using a solid ground plane, and minimizing trace lengths and loops. Additionally, placing the device near the power supply and using a common mode choke can help reduce EMI.
-
To ensure reliable operation in high-temperature environments, ensure proper heat sinking, use a thermally conductive material for the PCB, and follow Microchip's recommended thermal design guidelines. Additionally, consider using a thermal interface material and ensuring good airflow around the device.
-
In systems with high EMS, it's essential to follow proper PCB design and layout practices, use shielding, and ensure good grounding. Additionally, consider using filters or common mode chokes to reduce electromagnetic susceptibility. Microchip also recommends following IEC 61000-4-2 and IEC 61000-4-3 standards for EMS testing.
-
While the TC4468COE is specified for 5V operation, it can operate with a supply voltage range of 4.5V to 5.5V. However, be aware that operating outside the recommended voltage range may affect device performance, and it's essential to verify the device's functionality and performance under the specific voltage conditions.
-
To troubleshoot issues with the TC4468COE, start by verifying the power supply voltage, checking for proper PCB layout and routing, and ensuring correct pin connections. Use oscilloscopes or logic analyzers to monitor signals and identify potential issues. Consult Microchip's application notes and technical support resources for additional guidance.
Trust Checks
System Verified
TC4468COE Overview

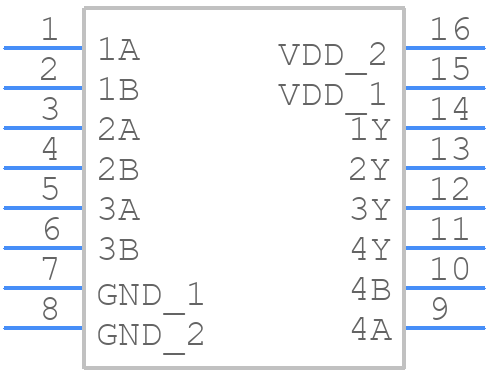

Use the download button to access the TC4468COE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TC446,
or try a keyword search, such as MOSFET Drivers
