TC4W53FU - Toshiba

Description: One-Gate Logic(L-MOS), SPDT Analog Multiplexer, SOT-505(SM8)

Download TC4W53FU Model

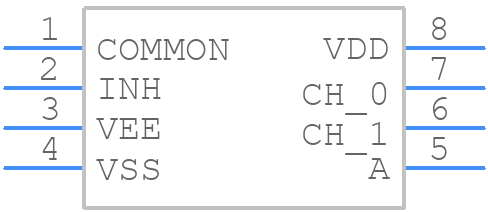

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TC4W53FU - Toshiba PCB footprint - Other - Other - SSOP8-P-0.65
click to zoom
3D Models
TC4W53FU - Toshiba  - 3D model - Other - SSOP8-P-0.65
click to zoom

TC4W53FU Details

  • Manufacturer Part Number:

    TC4W53FU

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SSOP-8

  • Pin Count:

    8

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    6.55

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    2.9 mm

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • On-state Resistance Match-Nom:

    10 Ω

  • On-state Resistance-Max (Ron):

    950 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSSOP8,.16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.3 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    450 ns

  • Switch-on Time-Max:

    550 ns

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    2.8 mm

TC4W53FU Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the TC4W53FU is -40°C to 85°C, although it can withstand storage temperatures from -55°C to 125°C.
  • To ensure proper power-on and power-off, it's recommended to follow a power-up sequence of VCC first, then VIN, and a power-down sequence of VIN first, then VCC. Additionally, ensure that the input voltage ramps up and down slowly to prevent damage.
  • The maximum allowable voltage on the input pins (VIN and VCC) is 7V, although the recommended operating voltage is 5V ± 10%.
  • To prevent electrostatic discharge (ESD) damage, handle the device by the body or use an anti-static wrist strap, and ensure that the device is stored in an anti-static bag or container.
  • To minimize noise and ensure proper operation, it's recommended to follow a star-connection layout for the power supply pins, keep the input and output traces short and separate, and use a solid ground plane.
