Part Image

TC58BVG2S0HTAI0 - Toshiba

Description: NAND Flash 3.3V 4Gb 24nm SLC NAND (EEPROM)

Download TC58BVG2S0HTAI0 Model

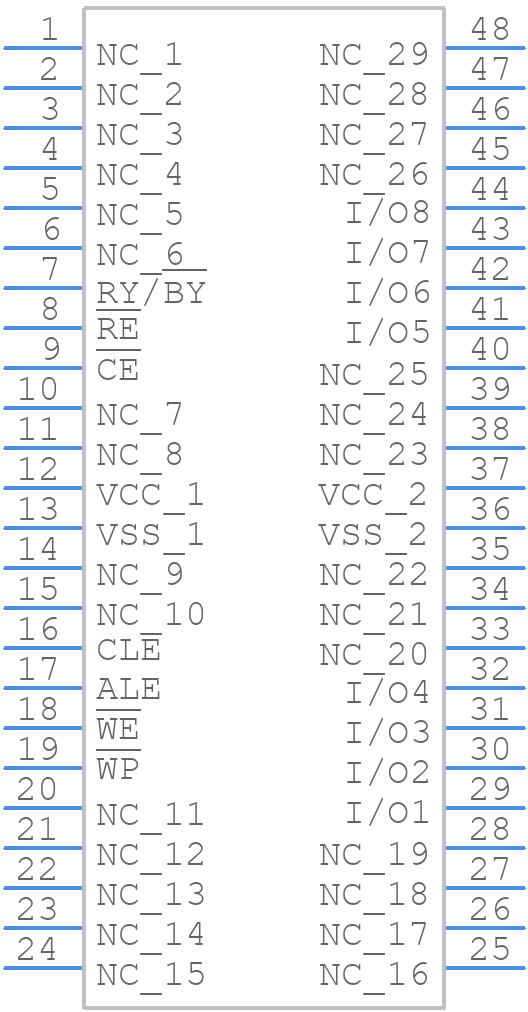

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TC58BVG2S0HTAI0 - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - TSOP-48
click to zoom
3D Models
TC58BVG2S0HTAI0 - Toshiba  - 3D model - Small Outline Packages - TSOP-48
click to zoom

TC58BVG2S0HTAI0 Details

  • Manufacturer Part Number:

    TC58BVG2S0HTAI0

  • Part Life Cycle Code:

    Transferred

  • Part Package Code:

    TSOP1

  • Package Description:

    TSOP1-48

  • Pin Count:

    48

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Toshiba America Electronic Components

  • Access Time-Max:

    25 ns

  • JESD-30 Code:

    R-PDSO-G48

  • Length:

    18.4 mm

  • Memory Density:

    4294967296 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of Words:

    536870912 words

  • Number of Words Code:

    512000000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    512MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSOP1

  • Package Equivalence Code:

    TSSOP48,.8,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    3.3 V

  • Seated Height-Max:

    1.2 mm

  • Standby Current-Max:

    0.00005 A

  • Supply Current-Max:

    0.03 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Type:

    NAND TYPE

  • Width:

    12 mm

  • Write Cycle Time-Max (tWC):

    0.000025 ms

  • Write Protection:

    HARDWARE

TC58BVG2S0HTAI0 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the TC58BVG2S0HTAI0 is -40°C to 85°C.
  • The power-up and power-down sequences for the TC58BVG2S0HTAI0 should be handled according to the datasheet, with a gradual voltage ramp-up and ramp-down to prevent damage to the device.
  • The maximum allowable voltage for the TC58BVG2S0HTAI0 is 3.6V, and exceeding this voltage may cause damage to the device.
  • To ensure data integrity and prevent data corruption during power failures or brownouts, it is recommended to use a capacitor or other energy storage device to maintain power to the TC58BVG2S0HTAI0 for a short period of time, allowing the device to complete any pending write operations.
  • The typical access time for the TC58BVG2S0HTAI0 is 70ns, but this may vary depending on the specific application and operating conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TC58BVG2S0HTAI0 Overview

Use the download button to access the TC58BVG2S0HTAI0 schematic symbol, PCB footprint, and 3D model.
