Technical Content
Part Image

TC7106CKW713 - Microchip

Description: LCD Drivers w/LCD Driver

Download TC7106CKW713 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

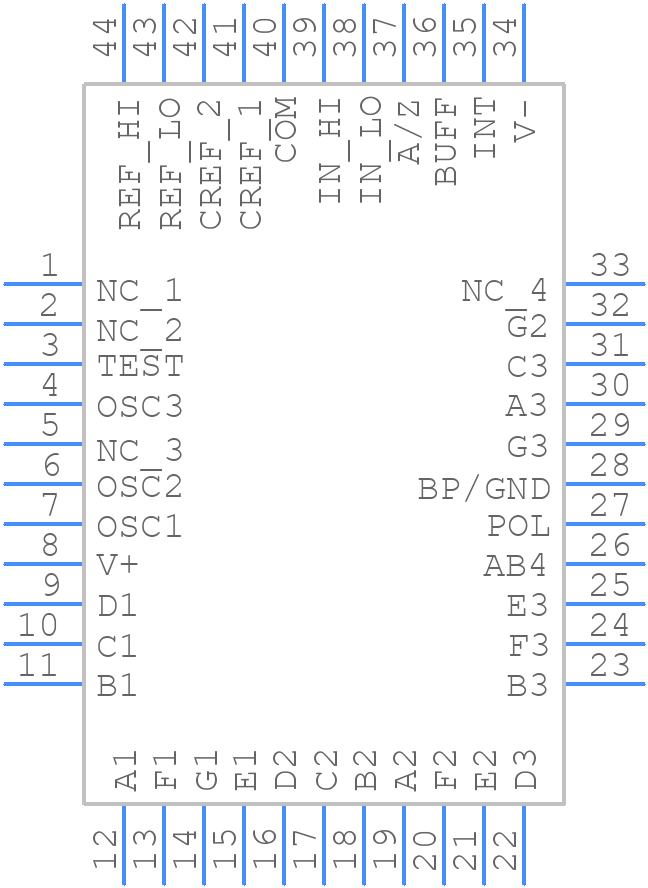

Symbol
TC7106CKW713 - Microchip - PCB symbol
click to zoom

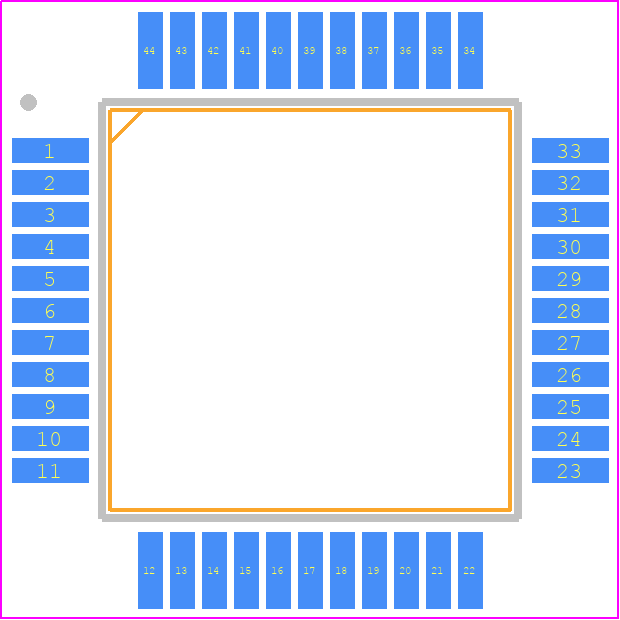

PCB Footprints
TC7106CKW713 - Microchip PCB footprint - Quad Flat Packages - Quad Flat Packages - pg-44-Lead PQFP-1
click to zoom
3D Models
TC7106CKW713 - Microchip - 3D model - Quad Flat Packages - pg-44-Lead PQFP-1
click to zoom

TC7106CKW713 Details

  • Manufacturer Part Number:

    TC7106CKW713

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Pin Count:

    44

  • Manufacturer Package Code:

    MQFP-44

  • Country Of Origin:

    Philippines, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Analog Input Voltage-Max:

    3.35 V

  • Analog Input Voltage-Min:

    2.7 V

  • Converter Type:

    ADC, DUAL-SLOPE

  • JESD-30 Code:

    S-PQFP-G44

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    44

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QFP

  • Package Equivalence Code:

    QFP44,.52SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    2.45 mm

  • Supply Current-Max:

    1.8 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    10 mm

TC7106CKW713 Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the TC7106CKW713 involves keeping the analog and digital grounds separate, using a star-ground configuration, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a solid ground plane to minimize noise and EMI.
  • To ensure accurate temperature measurement, it's essential to follow proper thermal design practices, such as using a thermally conductive material for the PCB, keeping the device away from heat sources, and using a thermocouple or thermistor with a high accuracy rating. Additionally, calibrating the device and using a high-quality voltage reference can also improve accuracy.
  • The TC7106CKW713 has an operating temperature range of -40°C to +125°C, but the accuracy of the temperature measurement may degrade at extreme temperatures. It's recommended to consult the datasheet for specific temperature-related specifications and to consider using a temperature sensor with a wider operating range if necessary.
  • The TC7106CKW713 is designed to operate with a 3.3V power supply, but it can tolerate a maximum voltage of 5.5V. However, operating the device at 5V may reduce its accuracy and reliability. It's recommended to use a 3.3V power supply or a voltage regulator to ensure optimal performance.
  • The TC7106CKW713 has a 3-wire serial interface that can be easily interfaced with a microcontroller. The device requires a clock signal, a data input/output line, and a chip select line. The microcontroller can send commands and read data from the TC7106CKW713 using a standard SPI protocol.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TC7106CKW713 Overview

Use the download button to access the TC7106CKW713 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TC710, or try a keyword search, such as Analog to Digital Converters

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
