TC7107CPL - Microchip

Description: Microchip TC7107CPL, 3.5 LSB ADC, Differential Input, 40-Pin PDIP

Download TC7107CPL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

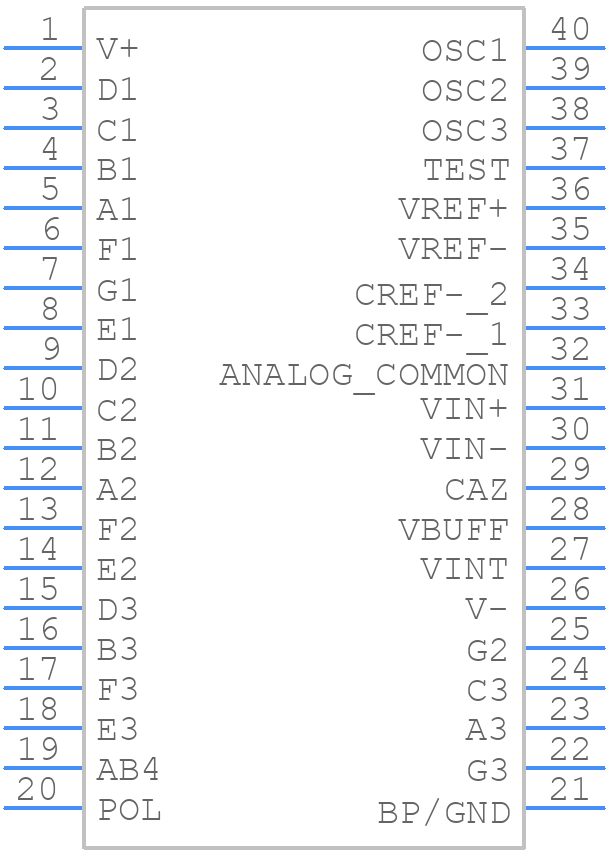

TC7107CPL - Microchip - PCB symbol
click to zoom
PCB Footprints

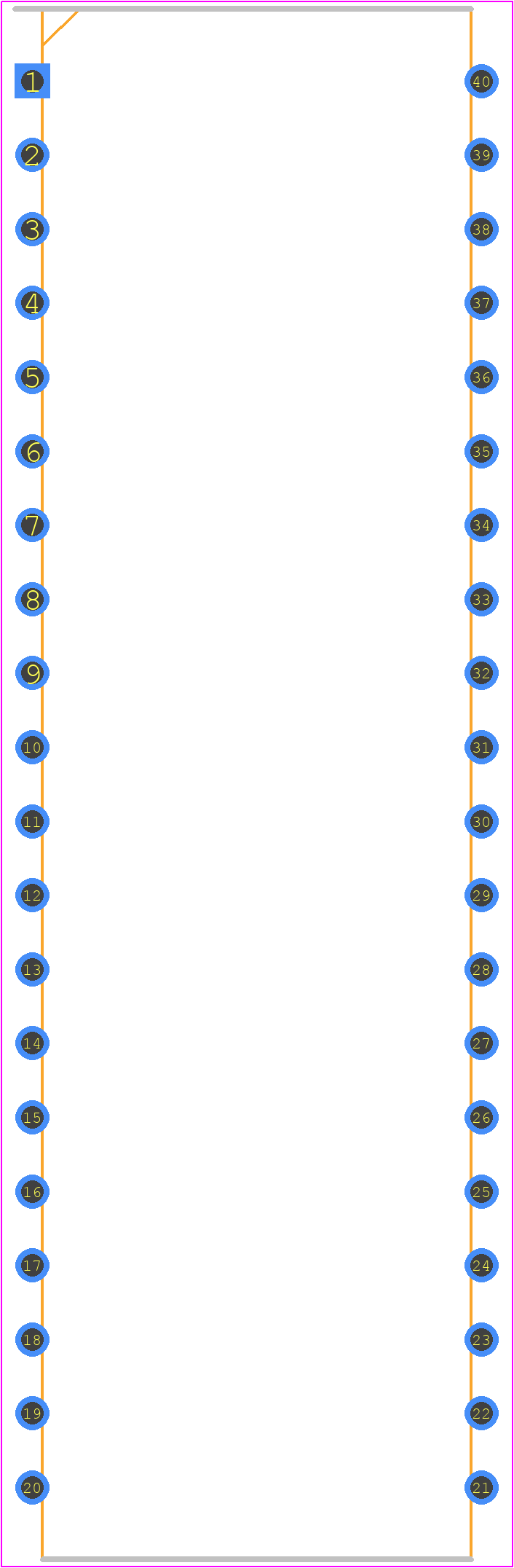

TC7107CPL - Microchip PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 40 ld PDIP (P) 600 mil_
click to zoom
3D Models
TC7107CPL - Microchip - 3D model - Dual-In-Line Packages - 40 ld PDIP (P) 600 mil_
click to zoom

TC7107CPL Details

  • Manufacturer Part Number:

    TC7107CPL

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Pin Count:

    40

  • Manufacturer Package Code:

    PDIP-40

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Analog Input Voltage-Max:

    3.35 V

  • Analog Input Voltage-Min:

    2.7 V

  • Converter Type:

    ADC, DUAL-SLOPE

  • JESD-30 Code:

    R-PDIP-T40

  • JESD-609 Code:

    e3

  • Length:

    51.753 mm

  • Number of Analog In Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP40,.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    6.35 mm

  • Supply Current-Max:

    1.8 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    15.24 mm

TC7107CPL Frequently Asked Questions (FAQs)

  • The TC7107CPL can handle input voltages up to 40V, but it's recommended to operate within the specified range of 4.5V to 30V for optimal performance.
  • To ensure accurate voltage measurement, make sure to use a high-impedance input source, minimize noise and interference, and use a stable reference voltage. Also, calibrate the device according to the datasheet recommendations.
  • The 'Zero' pin is used to set the zero-scale voltage reference for the device. It's typically connected to a stable voltage reference or a voltage divider network to set the desired zero-scale voltage.
  • The TC7107CPL is designed for low-frequency applications, and its bandwidth is limited to around 100 kHz. For high-frequency applications, consider using a different device or a specialized high-frequency voltage-to-frequency converter.
  • The TC7107CPL can be interfaced with a microcontroller using a digital counter or a timer to measure the frequency output. You can also use a dedicated IC or a microcontroller with a built-in frequency counter or timer.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TC7107CPL Overview

Use the download button to access the TC7107CPL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TC710, or try a keyword search, such as Analog to Digital Converters
