TC74ACT541F(F) - Toshiba

Description: Toshiba TC74ACT541F(F) Octal-Channel Buffer & Line Driver, 3-State, 20-Pin SOP

Download TC74ACT541F(F) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

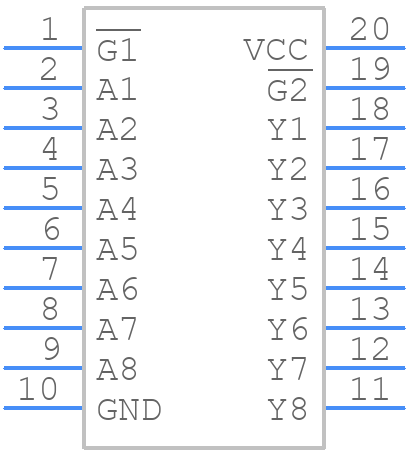

TC74ACT541F(F) - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - SOP20-P-300-1.27A
click to zoom
3D Models
TC74ACT541F(F) - Toshiba  - 3D model - Small Outline Packages - SOP20-P-300-1.27A
click to zoom

TC74ACT541F(F) Details

  • Manufacturer Part Number:

    TC74ACT541F(F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-20

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    5.4

  • Additional Feature:

    WITH DUAL OUTPUT ENABLE

  • Control Type:

    ENABLE LOW

  • Count Direction:

    UNIDIRECTIONAL

  • Family:

    ACT

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    12.8 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    BUS DRIVER

  • Max I(ol):

    0.024 A

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Ports:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Power Supply Current-Max (ICC):

    200 mA

  • Prop. Delay@Nom-Sup:

    9.5 ns

  • Propagation Delay (tpd):

    9.5 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.9 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

TC74ACT541F(F) Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TC74ACT541F(F) is 4.5V to 5.5V, although it can operate from 3.0V to 5.5V with reduced performance.
  • It is recommended to power up the VCC pin before the input signals, and power down the VCC pin after the input signals. This ensures that the device is properly initialized and avoids any potential latch-up or damage.
  • The maximum frequency of operation for the TC74ACT541F(F) is 100 MHz, although this can vary depending on the specific application and operating conditions.
  • To ensure signal integrity, it is recommended to use a low-impedance PCB design, minimize trace lengths, and use termination resistors or capacitors as necessary to reduce signal reflections and ringing.
  • Yes, the TC74ACT541F(F) is compatible with 3.3V logic levels, although the output voltage levels may be slightly lower than 3.3V due to the device's internal voltage drop.
