TC74HC273AP(F) - Toshiba

Description: Toshiba TC74HC273AP(F) Octal D Type Flip Flop IC, 20-Pin PDIP

Download TC74HC273AP(F) Model

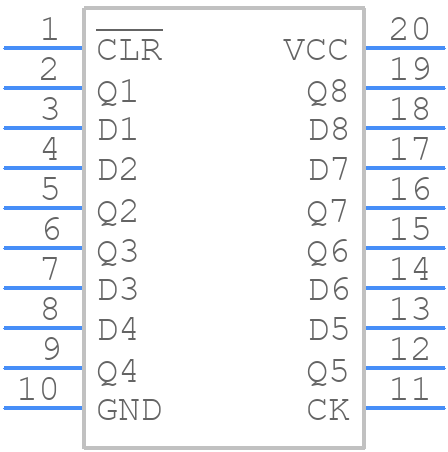

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

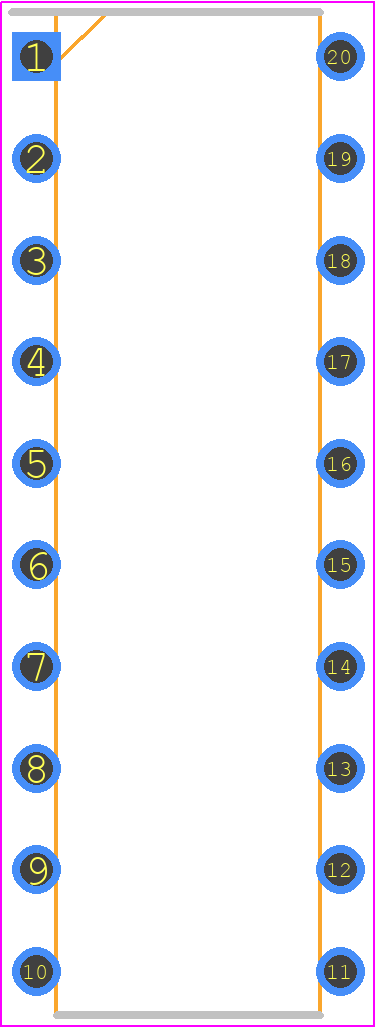

TC74HC273AP(F) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP20-P-300-2.54A
click to zoom
3D Models
TC74HC273AP(F) - Toshiba  - 3D model - Dual-In-Line Packages - DIP20-P-300-2.54A
click to zoom

TC74HC273AP(F) Details

  • Manufacturer Part Number:

    TC74HC273AP(F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-20

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    5

  • Family:

    HC/UH

  • JESD-30 Code:

    R-PDIP-T20

  • Length:

    24.6 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    D FLIP-FLOP

  • Max Frequency@Nom-Sup:

    24000000 Hz

  • Max I(ol):

    0.004 A

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Packing Method:

    TUBE

  • Propagation Delay (tpd):

    180 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.45 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Trigger Type:

    POSITIVE EDGE

  • Width:

    7.62 mm

  • fmax-Min:

    28 MHz

TC74HC273AP(F) Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for TC74HC273AP(F) is 2V to 6V, with a typical voltage of 5V.
  • When the input pins are not in use, they should be tied to a fixed logic level (VCC or GND) to prevent them from floating and causing unwanted switching.
  • The maximum clock frequency that can be used with TC74HC273AP(F) is 10MHz, but it depends on the operating voltage and load capacitance.
  • Yes, TC74HC273AP(F) can be used in a 3.3V system, but the output voltage will be limited to 3.3V, and the input voltage threshold may be affected.
  • To ensure that the output of TC74HC273AP(F) is not affected by noise, use a decoupling capacitor (e.g., 0.1uF) between VCC and GND, and consider using a series resistor (e.g., 1kΩ) on the output pin.
