TC74HC595AF(F) - Toshiba

Description: IC, 74 series logic

Download TC74HC595AF(F) Model

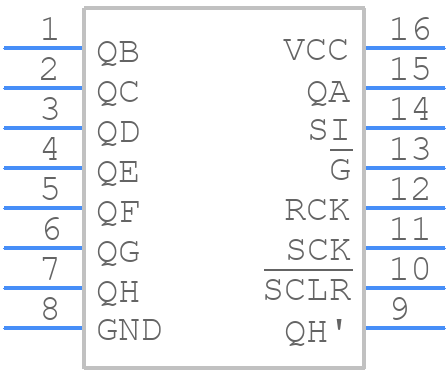

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TC74HC595AF(F) - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - SOP16-P-300-1.27A
click to zoom
3D Models
TC74HC595AF(F) - Toshiba  - 3D model - Small Outline Packages - SOP16-P-300-1.27A
click to zoom

TC74HC595AF(F) Details

  • Manufacturer Part Number:

    TC74HC595AF(F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-16

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    5.35

  • Count Direction:

    RIGHT

  • Family:

    HC/UH

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    10.3 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    SERIAL IN PARALLEL OUT

  • Max Frequency@Nom-Sup:

    25000000 Hz

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Power Supply Current-Max (ICC):

    75 mA

  • Propagation Delay (tpd):

    155 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.9 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Trigger Type:

    POSITIVE EDGE

  • Width:

    5.3 mm

  • fmax-Min:

    28 MHz

TC74HC595AF(F) Frequently Asked Questions (FAQs)

  • The maximum clock frequency for the TC74HC595AF(F) is 25 MHz, but it can vary depending on the operating voltage and temperature. It's recommended to check the datasheet for specific frequency limits under different operating conditions.
  • To ensure reliable data transfer, make sure to use a pull-up resistor on the RCLK (clock) line, and use a buffer or a series resistor on the data line to prevent bus contention. Also, ensure that the microcontroller and the TC74HC595AF(F) are operating at the same voltage level.
  • The Output Enable (OE) pin is used to enable or disable the output of the TC74HC595AF(F). When OE is low, the outputs are enabled, and when OE is high, the outputs are in a high-impedance state. Use OE to control the output of the shift register, especially when you need to disconnect the outputs from the load during power-up or power-down sequences.
  • Yes, the TC74HC595AF(F) can be used as a level shifter, but it's not recommended. The device is designed as a shift register, and using it as a level shifter may compromise its performance and reliability. If you need a level shifter, consider using a dedicated level shifter IC.
  • During power-on, the TC74HC595AF(F) may exhibit unpredictable behavior due to the internal power-on reset (POR) sequence. To ensure a clean startup, use an external reset circuit or a power-on reset IC to hold the device in reset until the power supply is stable. Then, release the reset and initialize the device according to the datasheet.
