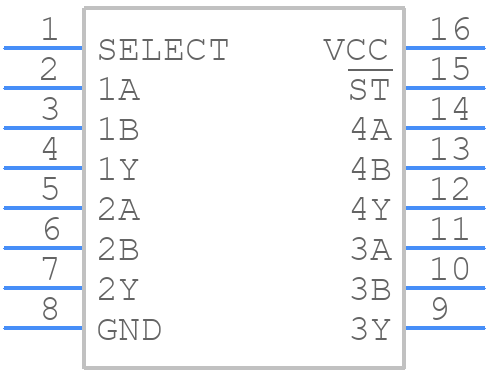

TC74LCX157FK - Toshiba

TC74LCX157FK Details

• Manufacturer Part Number:

  TC74LCX157FK

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  SOIC

• Package Description:

  VSSOP-16

• Pin Count:

  16

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Toshiba America Electronic Components

• YTEOL:

  6

• Family:

  LVC/LCX/Z

• JESD-30 Code:

  R-PDSO-G16

• Length:

  4 mm

• Load Capacitance (CL):

  50 pF

• Logic IC Type:

  MULTIPLEXER

• Max I(ol):

  0.024 A

• Number of Functions:

  4

• Number of Inputs:

  2

• Number of Outputs:

  1

• Number of Terminals:

  16

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  VSSOP

• Package Equivalence Code:

  TSSOP16,.16,20

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Power Supply Current-Max (ICC):

  0.01 mA

• Prop. Delay@Nom-Sup:

  5.8 ns

• Propagation Delay (tpd):

  20 ns

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1 mm

• Supply Voltage-Max (Vsup):

  3.6 V

• Supply Voltage-Min (Vsup):

  1.65 V

• Supply Voltage-Nom (Vsup):

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Width:

  3 mm
