TC74LCX245FK(EL,K) - Toshiba

Description: Toshiba TC74LCX245FK(EL,K), Bus Transceiver, 8-Bit Non-Inverting LVCMOS, 1.65 → 3.6 V, 20-Pin VSSOP

Download TC74LCX245FK(EL,K) Model

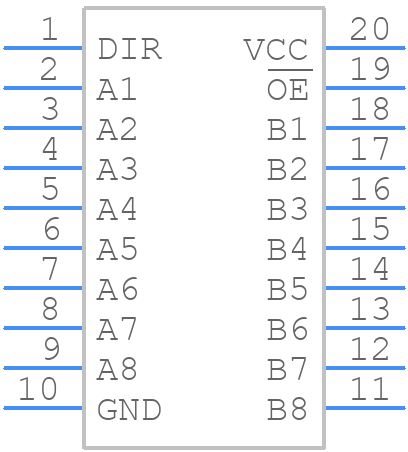

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TC74LCX245FK(EL,K) - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - VSSOP20-P-0030-0.50
click to zoom
3D Models
TC74LCX245FK(EL,K) - Toshiba  - 3D model - Small Outline Packages - VSSOP20-P-0030-0.50
click to zoom

TC74LCX245FK(EL,K) Details

  • Manufacturer Part Number:

    TC74LCX245FK(EL,K)

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VSSOP-20

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    6

  • Control Type:

    COMMON CONTROL

  • Count Direction:

    BIDIRECTIONAL

  • Family:

    LVC/LCX/Z

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    5 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    BUS TRANSCEIVER

  • Max I(ol):

    0.024 A

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Ports:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSSOP

  • Package Equivalence Code:

    TSSOP20,.16,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH

  • Power Supply Current-Max (ICC):

    100 mA

  • Prop. Delay@Nom-Sup:

    7 ns

  • Propagation Delay (tpd):

    25 ns

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

TC74LCX245FK(EL,K) Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TC74LCX245FK is 2.3V to 3.6V, although it can operate from 1.65V to 5.5V.
  • It is recommended to power up the VCC pin before the input signals, and power down the VCC pin after the input signals. This ensures that the device is properly initialized and avoids any potential latch-up or damage.
  • The maximum frequency of operation for the TC74LCX245FK is 100 MHz, although it can operate at higher frequencies with reduced voltage and load capacitance.
  • The TC74LCX245FK requires proper termination to prevent signal reflections and ensure signal integrity. A 50Ω termination resistor should be used at the output of each channel, and the input signals should be properly terminated according to the system requirements.
  • The maximum output current of the TC74LCX245FK is ±24mA, although it is recommended to limit the output current to ±12mA to ensure reliable operation and prevent overheating.
