TC74VHC245FK(EL,K) - Toshiba

Description: Toshiba TC74VHC245FK(EL,K), Bus Transceiver, 8-Bit Non-Inverting CMOS, 2 → 5.5 V, 20-Pin VSSOP

Download TC74VHC245FK(EL,K) Model

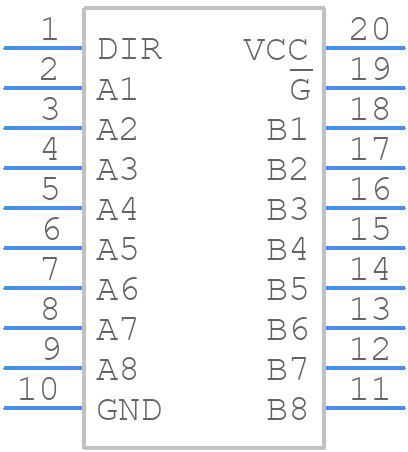

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TC74VHC245FK(EL,K) - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - VSSOP20-P-0030-0.50
click to zoom
3D Models
TC74VHC245FK(EL,K) - Toshiba  - 3D model - Small Outline Packages - VSSOP20-P-0030-0.50
click to zoom

TC74VHC245FK(EL,K) Details

  • Manufacturer Part Number:

    TC74VHC245FK(EL,K)

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VSSOP-20

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    7

  • Control Type:

    COMMON CONTROL

  • Count Direction:

    BIDIRECTIONAL

  • Family:

    AHC/VHC

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    5 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    BUS TRANSCEIVER

  • Max I(ol):

    0.008 A

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Ports:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSSOP

  • Package Equivalence Code:

    TSSOP20,.16,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Power Supply Current-Max (ICC):

    0.04 mA

  • Prop. Delay@Nom-Sup:

    8.5 ns

  • Propagation Delay (tpd):

    13.5 ns

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    3 mm

TC74VHC245FK(EL,K) Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TC74VHC245FK is 2.0V to 5.5V.
  • When the input pins are not in use, they should be tied to VCC or GND through a resistor to prevent them from floating and causing unwanted switching.
  • The maximum frequency of operation for the TC74VHC245FK is 100 MHz.
  • To ensure that the output signals are not distorted or attenuated, the output pins should be terminated with a load impedance that matches the characteristic impedance of the transmission line, and the output voltage swing should be within the recommended range.
  • Yes, the TC74VHC245FK can be used in a 3.3V system, but the input and output voltage levels should be within the recommended range, and the power supply voltage should be 3.3V ± 10%.
