TC74VHC32F(EL,K,F) - Toshiba

Description: Logic Gates OR Gate VCC: 2-5.5V

Download TC74VHC32F(EL,K,F) Model

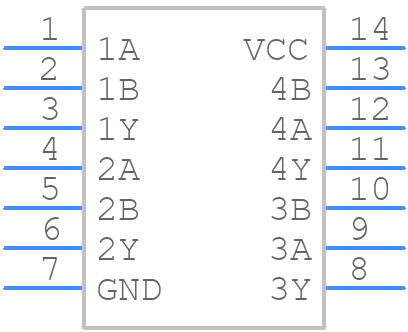

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TC74VHC32F(EL,K,F) - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - SOP14-P-300-1.27A
click to zoom
3D Models
TC74VHC32F(EL,K,F) - Toshiba  - 3D model - Small Outline Packages - SOP14-P-300-1.27A
click to zoom

TC74VHC32F(EL,K,F) Details

  • Manufacturer Part Number:

    TC74VHC32F(EL,K,F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.300 INCH, 1.27 MM PITCH, ROHS COMPLIANT, PLASTIC, SOP-14

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    7

  • Family:

    AHC/VHC/H/U/V

  • JESD-30 Code:

    R-PDSO-G14

  • Length:

    10.3 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    OR GATE

  • Max I(ol):

    0.008 A

  • Number of Functions:

    4

  • Number of Inputs:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    TOTEM-POLE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR, EMBOSSED

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    0.04 mA

  • Prop. Delay@Nom-Sup:

    8.5 ns

  • Propagation Delay (tpd):

    13 ns

  • Schmitt Trigger:

    NO

  • Seated Height-Max:

    1.9 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

TC74VHC32F(EL,K,F) Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TC74VHC32F is 2.0V to 5.5V, although it can operate from 1.8V to 5.5V with reduced performance.
  • When the input pins are not in use, they should be tied to VCC or GND through a resistor to prevent floating inputs and reduce power consumption.
  • The maximum frequency of operation for the TC74VHC32F is 120 MHz at 3.3V and 100 MHz at 2.5V, although this can vary depending on the specific application and operating conditions.
  • To ensure that the output signals are not distorted or skewed, it is recommended to use a pull-up or pull-down resistor on the output pins, and to keep the output load capacitance below 50 pF.
  • The power consumption of the TC74VHC32F depends on the operating frequency, voltage, and load conditions, but typically ranges from 10 μA to 100 μA per gate.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TC74VHC32F(EL,K,F) Overview

Use the download button to access the TC74VHC32F(EL,K,F) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TC74V, or try a keyword search, such as Gates
