TC74VHC4052AFK(E,K - Toshiba

Description: Toshiba TC74VHC4052AFK(E,K, Multiplexer/Demultiplexer Dual 4:1, 3 V, 5 V, 16-Pin VSSOP

Download TC74VHC4052AFK(E,K Model

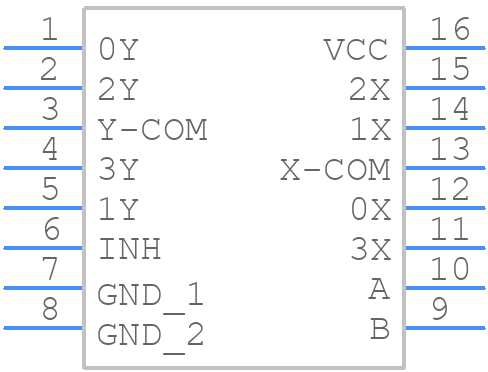

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TC74VHC4052AFK(E,K - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - VSSOP16-P-0030-0.50
click to zoom
3D Models
TC74VHC4052AFK(E,K - Toshiba  - 3D model - Small Outline Packages - VSSOP16-P-0030-0.50
click to zoom

TC74VHC4052AFK(E,K Details

  • Manufacturer Part Number:

    TC74VHC4052AFK(E,K

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VSSOP-16

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    7

  • Analog IC - Other Type:

    DIFFERENTIAL MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    4 mm

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    45 dB

  • On-state Resistance Match-Nom:

    10 Ω

  • On-state Resistance-Max (Ron):

    108 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSSOP

  • Package Equivalence Code:

    TSSOP16,.16,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    1 mm

  • Signal Current-Max:

    0.025 A

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    22 ns

  • Switch-on Time-Max:

    22 ns

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    3 mm

TC74VHC4052AFK(E,K Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the TC74VHC4052AFK(E) is 30 MHz.
  • To ensure proper signal integrity, use a low-impedance output driver, minimize trace lengths, and use proper termination and shielding techniques.
  • Yes, the TC74VHC4052AFK(E) can be used as a level shifter, but it's not recommended as it's not designed for level shifting and may not provide the required voltage translation.
  • The maximum power dissipation of the TC74VHC4052AFK(E) is 500 mW.
  • Use ESD protection devices, such as TVS diodes or ESD arrays, on the input and output pins to protect the device from electrostatic discharge.
