TC74VHC541F(EL,K,F - Toshiba

Description: Buffers & Line Drivers CMOS Logic IC 3.73ns 8mA 2.0 to 5.5V

Download TC74VHC541F(EL,K,F Model

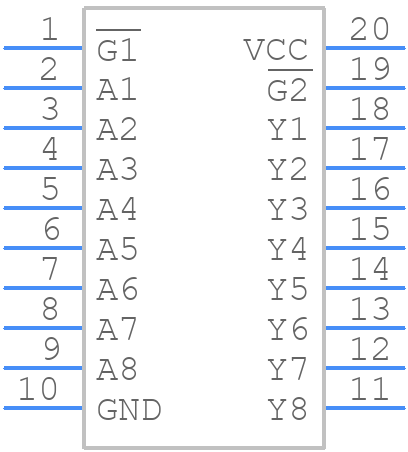

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TC74VHC541F(EL,K,F - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - SOP20-P-300-1.27A _1
click to zoom
3D Models
TC74VHC541F(EL,K,F - Toshiba  - 3D model - Small Outline Packages - SOP20-P-300-1.27A _1
click to zoom

TC74VHC541F(EL,K,F Details

  • Manufacturer Part Number:

    TC74VHC541F(EL,K,F

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-20

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    7

  • Family:

    AHC/VHC/H/U/V

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    12.8 mm

  • Logic IC Type:

    BUS DRIVER

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Ports:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Propagation Delay (tpd):

    12 ns

  • Seated Height-Max:

    1.9 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    5.3 mm

TC74VHC541F(EL,K,F Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TC74VHC541F is 2.0V to 5.5V.
  • It is recommended to power up the VCC pin first and then the input signals, and to power down the input signals first and then the VCC pin to prevent unwanted output transitions.
  • The maximum frequency of operation for the TC74VHC541F is 100 MHz.
  • To ensure signal integrity, use a low-impedance output driver, minimize trace lengths, and use proper termination and decoupling techniques.
  • Yes, the TC74VHC541F can operate in a 3.3V system, but ensure that the input signals are within the recommended voltage range of 0.8V to 3.6V.
