TC74VHC9541FK(EL,K - Toshiba

Description: Toshiba TC74VHC9541FK(EL,K, Octal Bus Buffer, 12.5 ns@ 3.3 V 8mA, 2 → 5.5 V, 20-Pin VSSOP

Download TC74VHC9541FK(EL,K Model
Schematic

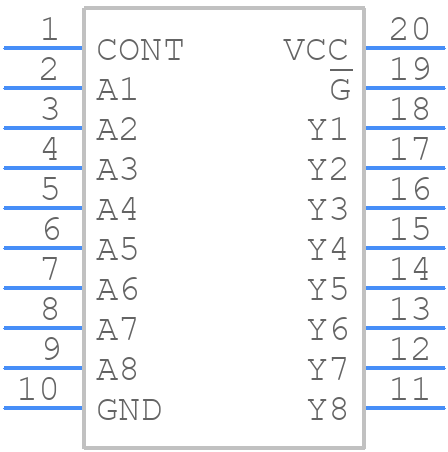

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TC74VHC9541FK(EL,K - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - VSSOP20-P-0030-0.50
click to zoom
3D Models
TC74VHC9541FK(EL,K - Toshiba  - 3D model - Small Outline Packages - VSSOP20-P-0030-0.50
click to zoom

TC74VHC9541FK(EL,K Details

  • Manufacturer Part Number:

    TC74VHC9541FK(EL,K

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VSSOP-20

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    7

  • Control Type:

    ENABLE LOW

  • Family:

    AHC/VHC/H/U/V

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    5 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    BUS DRIVER

  • Max I(ol):

    0.008 A

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Ports:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSSOP

  • Package Equivalence Code:

    TSSOP20,.16,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH

  • Power Supply Current-Max (ICC):

    75 mA

  • Propagation Delay (tpd):

    15 ns

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

TC74VHC9541FK(EL,K Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TC74VHC9541FK is 2.0V to 5.5V.
  • To ensure reliable operation in high-temperature environments, it is recommended to follow the thermal design guidelines provided in the datasheet, including keeping the junction temperature (Tj) below 150°C and using a heat sink if necessary.
  • The maximum clock frequency supported by the TC74VHC9541FK is 100 MHz.
  • Yes, the TC74VHC9541FK can be used in a 3.3V system, as it is compatible with 3.3V logic levels.
  • The TC74VHC9541FK has a built-in power-on reset (POR) circuit that ensures the device is properly reset during power-up. No external POR circuitry is required.
