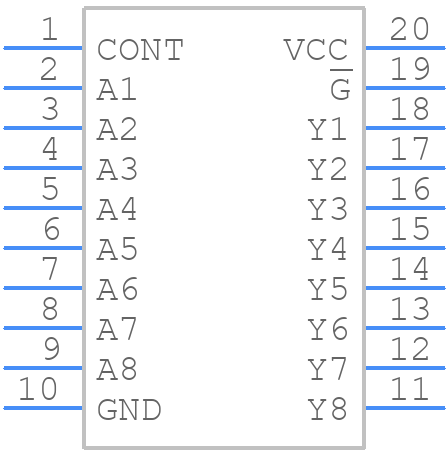

TC74VHCT9541AFK - Toshiba

TC74VHCT9541AFK Details

• Manufacturer Part Number:

  TC74VHCT9541AFK

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  SSOP

• Package Description:

  VSSOP-20

• Pin Count:

  20

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Toshiba America Electronic Components

• YTEOL:

  6.45

• Control Type:

  ENABLE LOW

• Count Direction:

  UNIDIRECTIONAL

• Family:

  AHCT/VHCT/VT

• JESD-30 Code:

  R-PDSO-G20

• Length:

  5 mm

• Load Capacitance (CL):

  50 pF

• Logic IC Type:

  BUS DRIVER

• Max I(ol):

  0.008 A

• Number of Bits:

  8

• Number of Functions:

  1

• Number of Ports:

  2

• Number of Terminals:

  20

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  3-STATE

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  VSSOP

• Package Equivalence Code:

  TSSOP20,.16,20

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH

• Power Supply Current-Max (ICC):

  75 mA

• Prop. Delay@Nom-Sup:

  13 ns

• Propagation Delay (tpd):

  13 ns

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1 mm

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Width:

  3 mm
