TC75W56FK,LF - Toshiba

Description: Comparator Standard (General Purpose) Push-Pull 8-SSOP,−55 to 125 °C,20μA

Download TC75W56FK,LF Model

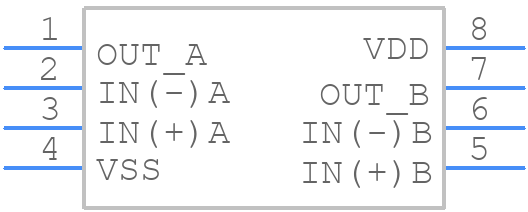

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TC75W56FK,LF - Toshiba PCB footprint - Other - Other - SSOP8-P-0.50S_2025
click to zoom
3D Models
TC75W56FK,LF - Toshiba  - 3D model - Other - SSOP8-P-0.50S_2025
click to zoom

TC75W56FK,LF Details

  • Manufacturer Part Number:

    TC75W56FK,LF

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    6

  • Amplifier Type:

    COMPARATOR

  • Input Offset Voltage-Max:

    7000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    2.3 mm

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    PUSH-PULL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSSOP

  • Package Equivalence Code:

    TSSOP8,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Response Time-Nom:

    30 ns

  • Seated Height-Max:

    0.9 mm

  • Supply Current-Max:

    0.044 mA

  • Supply Voltage Limit-Max:

    7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    2 mm

TC75W56FK,LF Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TC75W56FK,LF is 2.7V to 5.5V.
  • The POR circuitry in the TC75W56FK,LF is designed to reset the device when the power supply voltage is below a certain threshold. To handle POR, ensure that the power supply voltage is stable and within the recommended operating range before attempting to access the device.
  • The maximum clock frequency supported by the TC75W56FK,LF is 16 MHz.
  • The TC75W56FK,LF has a built-in watchdog timer that can be enabled and configured using the WDTCSR register. Consult the datasheet for specific details on how to implement a watchdog timer.
  • The internal oscillator in the TC75W56FK,LF provides a clock signal for the device, eliminating the need for an external clock source. It can be used as a backup clock source or as the primary clock source.
