TC75W59FU,LF - Toshiba

Description: Analog Comparators CMOS Comparator

Download TC75W59FU,LF Model

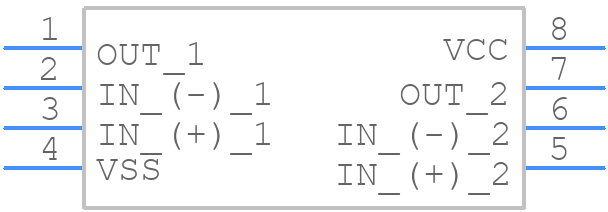

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TC75W59FU,LF - Toshiba PCB footprint - Other - Other - TC75W59FU,LF-3
click to zoom
3D Models
TC75W59FU,LF - Toshiba  - 3D model - Other - TC75W59FU,LF-3
click to zoom

TC75W59FU,LF Details

  • Manufacturer Part Number:

    TC75W59FU,LF

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    6

  • Amplifier Type:

    COMPARATOR

  • Input Offset Voltage-Max:

    7000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    2.9 mm

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    OPEN-DRAIN

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSSOP8,.16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Response Time-Nom:

    170 ns

  • Seated Height-Max:

    1.3 mm

  • Supply Current-Max:

    0.44 mA

  • Supply Voltage Limit-Max:

    7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    2.8 mm

TC75W59FU,LF Frequently Asked Questions (FAQs)

  • Toshiba recommends a PCB layout with a thermal pad connected to a large copper area on the bottom layer, and multiple vias to dissipate heat efficiently.
  • Implement a heat sink or thermal management system, and ensure the device is operated within the recommended temperature range (−40°C to 125°C).
  • The maximum allowed voltage on the input pins is 5.5V, exceeding which may cause damage to the device.
  • The TC75W59FU,LF is designed for low-frequency applications (up to 100 kHz). For high-frequency applications, consider using a different device or consulting with Toshiba's application engineers.
  • Follow standard ESD handling procedures, such as using an ESD wrist strap, mat, or workstation, and ensure the device is stored in an anti-static package.
