TC78H620FNG - Toshiba

Description: Motor/Motion/Ignition Controllers & Drivers Brush Motor Driver IC 18V 1A

Download TC78H620FNG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

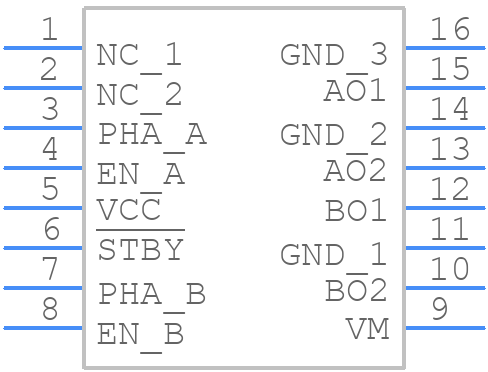

TC78H620FNG - Toshiba - PCB symbol
click to zoom
PCB Footprints
TC78H620FNG - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - SSOP16-P-225_0.65B
click to zoom
3D Models
TC78H620FNG - Toshiba - 3D model - Small Outline Packages - SSOP16-P-225_0.65B
click to zoom

TC78H620FNG Details

  • Manufacturer Part Number:

    TC78H620FNG

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    7

  • Analog IC - Other Type:

    HALF BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Current-Max:

    0.8 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Seated Height-Max:

    1.6 mm

  • Supply Current-Max (Isup):

    1 mA

  • Supply Voltage-Max (Vsup):

    15 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

TC78H620FNG Frequently Asked Questions (FAQs)

  • Toshiba recommends a PCB layout with a large copper area connected to the GND pin to dissipate heat efficiently. A minimum of 1 oz copper thickness is recommended, and the use of thermal vias can further improve heat dissipation.
  • The inductor selection depends on the application's requirements, such as the output current, switching frequency, and ripple current. Toshiba recommends using an inductor with a low DC resistance, high saturation current, and a suitable inductance value (e.g., 1-10 μH) to ensure stable operation.
  • Although the datasheet specifies a maximum VIN voltage of 28 V, it's recommended to keep the voltage below 25 V to ensure reliable operation and prevent damage to the internal components.
  • The TC78H620FNG has a built-in OCP function that can be enabled by connecting the OCP pin to the GND pin through a resistor. The OCP threshold can be set by selecting the appropriate resistor value according to the application's requirements.
  • Although the datasheet specifies an operating temperature range of -40°C to 125°C, it's recommended to operate the TC78H620FNG within a range of -20°C to 85°C for optimal performance and reliability.
