TC78H660FTG - Toshiba

Description: Dual H Bridge 2.5 V to 16.0 V 2.0 A (max) 0.48 Ω (typ.) Small QFN package with thermal pad (16pin)

Download TC78H660FTG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

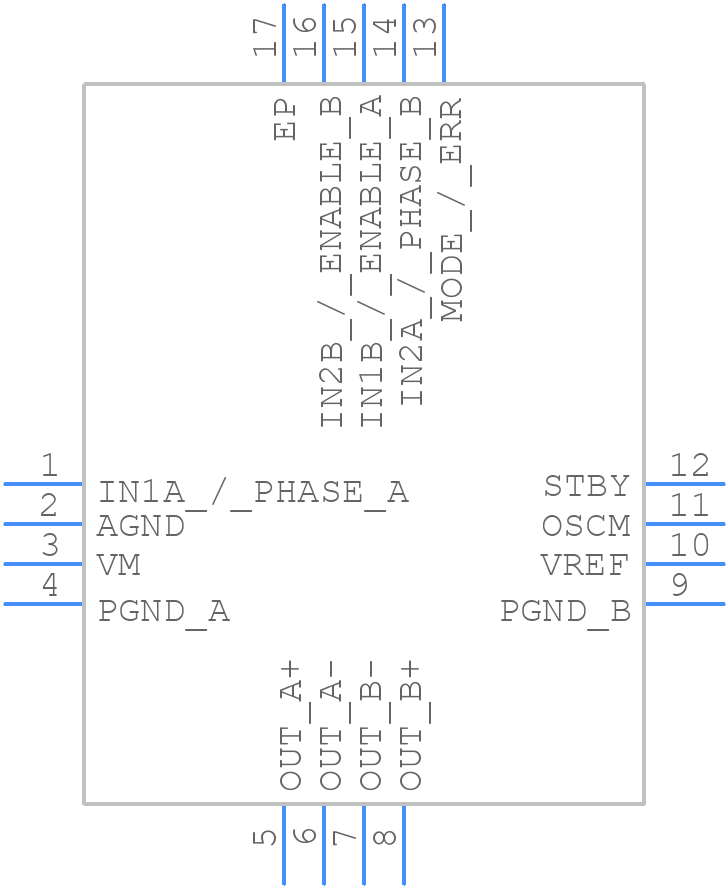

TC78H660FTG - Toshiba - PCB symbol
click to zoom
PCB Footprints
TC78H660FTG - Toshiba PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - P-VQFN16-0303-0.50-001
click to zoom
3D Models
TC78H660FTG - Toshiba - 3D model - Quad Flat No-Lead - P-VQFN16-0303-0.50-001
click to zoom

TC78H660FTG Details

  • Manufacturer Part Number:

    TC78H660FTG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VQFN-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2019-12-16

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    8

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TC78H660FTG Overview

Use the download button to access the TC78H660FTG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TC78H, or try a keyword search, such as Motion Control Electronics
