TC7MBL3125CFK(EL) - Toshiba

Description: Digital Bus Switch ICs General-purpose Bus Switch Low Voltage/Low Capacitance Quad Bus Switch, Vcc:1.65-3.6V

Download TC7MBL3125CFK(EL) Model

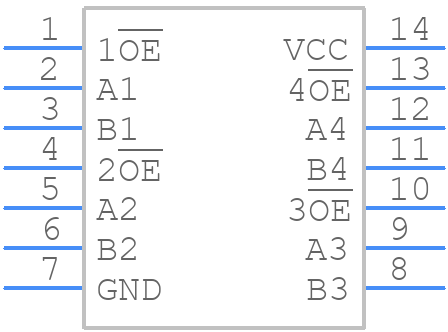

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TC7MBL3125CFK(EL) - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - US14
click to zoom
3D Models
TC7MBL3125CFK(EL) - Toshiba  - 3D model - Small Outline Packages - US14
click to zoom

TC7MBL3125CFK(EL) Details

  • Manufacturer Part Number:

    TC7MBL3125CFK(EL)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VSSOP-14

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    6

  • Control Type:

    ENABLE LOW

  • Count Direction:

    UNIDIRECTIONAL

  • Family:

    CBT/FST/QS/5C/B

  • JESD-30 Code:

    R-PDSO-G14

  • Length:

    4 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    BUS DRIVER

  • Number of Bits:

    1

  • Number of Functions:

    4

  • Number of Ports:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSSOP

  • Package Equivalence Code:

    TSSOP14,.16,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH

  • Power Supply Current-Max (ICC):

    100 mA

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

TC7MBL3125CFK(EL) Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TC7MBL3125CFK(EL) is 2.7V to 5.5V.
  • To ensure proper power-on and power-off, it is recommended to follow a slow voltage ramp-up and ramp-down sequence, with a maximum slew rate of 10mV/μs.
  • The maximum allowable power dissipation for the TC7MBL3125CFK(EL) is 500mW.
  • To prevent ESD damage, it is recommended to handle the device by the body or use an anti-static wrist strap, and to use ESD-protected workstations and tools.
  • The recommended storage temperature range for the TC7MBL3125CFK(EL) is -40°C to 125°C.
