TC7MPB9326FT - Toshiba

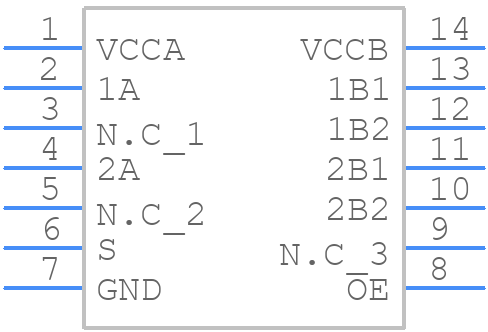

TC7MPB9326FT Details

• Manufacturer Part Number:

  TC7MPB9326FT

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  TSSOP

• Package Description:

  TSSOP-14

• Pin Count:

  14

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Toshiba America Electronic Components

• YTEOL:

  7.55

• Control Type:

  ENABLE HIGH

• Count Direction:

  UNIDIRECTIONAL

• Family:

  P

• JESD-30 Code:

  R-PDSO-G14

• Length:

  5 mm

• Load Capacitance (CL):

  30 pF

• Logic IC Type:

  BUS EXCHANGER

• Number of Bits:

  2

• Number of Functions:

  2

• Number of Ports:

  3

• Number of Terminals:

  14

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  3-STATE

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Equivalence Code:

  TSSOP14,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Power Supply Current-Max (ICC):

  25 mA

• Prop. Delay@Nom-Sup:

  2.2 ns

• Propagation Delay (tpd):

  2.2 ns

• Seated Height-Max:

  1.2 mm

• Supply Voltage-Max (Vsup):

  5 V

• Supply Voltage-Min (Vsup):

  1.65 V

• Supply Voltage-Nom (Vsup):

  2.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Width:

  4.4 mm
