TC7USB40MU,LF - Toshiba

Description: USB Switch ICs Dual SPDT USB Switch 200mW 5pF 3.5Ohm

Download TC7USB40MU,LF Model

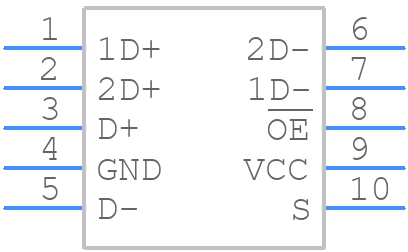

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TC7USB40MU,LF - Toshiba PCB footprint - Other - Other - TC7USB40MU,LF-2
click to zoom
3D Models
TC7USB40MU,LF - Toshiba  - 3D model - Other - TC7USB40MU,LF-2
click to zoom

TC7USB40MU,LF Details

  • Manufacturer Part Number:

    TC7USB40MU,LF

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    UQFN-10

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    7

  • Analog IC - Other Type:

    SPDT

  • JESD-30 Code:

    R-XQCC-N10

  • JESD-609 Code:

    e4

  • Length:

    1.8 mm

  • Normal Position:

    NO

  • Number of Channels:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    10

  • Off-state Isolation-Nom:

    24 dB

  • On-state Resistance Match-Nom:

    0.35 Ω

  • On-state Resistance-Max (Ron):

    14 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XQCCN

  • Package Equivalence Code:

    LCC10,.05X.06,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, EXTREMELY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.5 mm

  • Signal Current-Max:

    0.05 A

  • Supply Voltage-Max (Vsup):

    4.3 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    24 ns

  • Switch-on Time-Max:

    20 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.4 mm

TC7USB40MU,LF Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for TC7USB40MU,LF is 3.3V ± 10%.
  • To ensure signal integrity, use a 50-ohm transmission line, keep the signal path as short as possible, and use a common ground plane to reduce electromagnetic interference (EMI).
  • The TC7USB40MU,LF supports a maximum data transfer rate of 480 Mbps, which is compliant with the USB 2.0 high-speed specification.
  • The TC7USB40MU,LF has a built-in power-down mode to reduce power consumption. Use the EN pin to control the power-down mode, and ensure that the VCC pin is connected to a stable power source.
  • The maximum operating temperature range for TC7USB40MU,LF is -40°C to 85°C.
