Part Image

TC7W53FK,LF - Toshiba

Description: Multiplexer Switch ICs Single 2-Ch Multi 4ns 2V to 6V VCC

Download TC7W53FK,LF Model

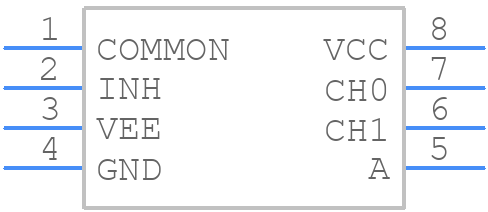

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TC7W53FK,LF - Toshiba PCB footprint - Other - Other - SSOP8-P-0.50A_2024
click to zoom
3D Models
TC7W53FK,LF - Toshiba  - 3D model - Other - SSOP8-P-0.50A_2024
click to zoom

TC7W53FK,LF Details

  • Manufacturer Part Number:

    TC7W53FK,LF

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-8

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    6.55

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    2.3 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Min (Vsup):

    -6 V

  • Neg Supply Voltage-Nom (Vsup):

    -4.5 V

  • Normal Position:

    NO

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Off-state Isolation-Nom:

    50 dB

  • On-state Resistance Match-Nom:

    5 Ω

  • On-state Resistance-Max (Ron):

    120 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSSOP

  • Package Equivalence Code:

    TSSOP8,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.9 mm

  • Signal Current-Max:

    0.025 A

  • Supply Current-Max (Isup):

    25 mA

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    280 ns

  • Switch-on Time-Max:

    280 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    2 mm

TC7W53FK,LF Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for TC7W53FK,LF is 1.65V to 5.5V.
  • To ensure the stability of the output voltage, it is recommended to use a capacitor with a value of 10uF or more between the VOUT pin and the GND pin, and to keep the input voltage stable.
  • The maximum output current that TC7W53FK,LF can provide is 50mA.
  • To handle thermal considerations, it is recommended to provide a heat sink or a thermal pad to dissipate heat, and to keep the device away from heat sources.
  • The EN (Enable) pin is used to enable or disable the output voltage. When the EN pin is high, the output voltage is enabled, and when it is low, the output voltage is disabled.
