TC7W53FU,LF - Toshiba

Description: Encoders, Decoders, Multiplexers & Demultiplexers L-MOS High- Speed Series

Download TC7W53FU,LF Model

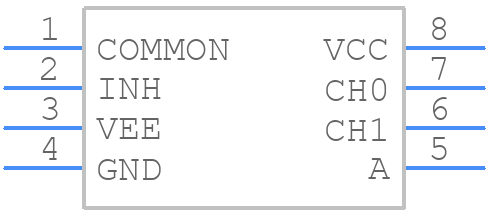

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TC7W53FU,LF - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - TC7W53FU,LF
click to zoom

TC7W53FU,LF Details

  • Manufacturer Part Number:

    TC7W53FU,LF

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-8

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    7

  • Analog IC - Other Type:

    DIFFERENTIAL MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    2.9 mm

  • Neg Supply Voltage-Max (Vsup):

    -6 V

  • Neg Supply Voltage-Nom (Vsup):

    -4.5 V

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Off-state Isolation-Nom:

    50 dB

  • On-state Resistance Match-Nom:

    10 Ω

  • On-state Resistance-Max (Ron):

    225 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    SSOP8,.16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    1.3 mm

  • Signal Current-Max:

    0.025 A

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    280 ns

  • Switch-on Time-Max:

    280 ns

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    2.8 mm

TC7W53FU,LF Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for TC7W53FU,LF is 1.65V to 5.5V.
  • To ensure the stability of the output voltage, it is recommended to use a capacitor with a value of 10uF or more between the VOUT and GND pins, and to keep the input voltage stable.
  • The maximum output current that TC7W53FU,LF can provide is 50mA.
  • To handle thermal considerations, it is recommended to provide adequate heat dissipation, such as using a heat sink or a thermal pad, and to keep the device away from high-temperature sources.
  • The EN (Enable) pin is used to enable or disable the voltage regulator. When the EN pin is high, the regulator is enabled, and when it is low, the regulator is disabled.
