TC7WZ08FK,LJ(CT - Toshiba

Description: AND Gate IC 2 Channel 8-SSOP

Download TC7WZ08FK,LJ(CT Model

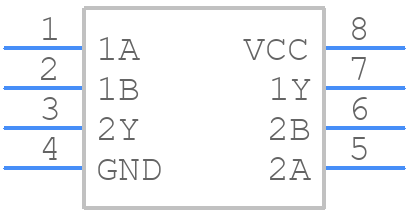

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TC7WZ08FK,LJ(CT - Toshiba PCB footprint - Other - Other - SOT-765
click to zoom
3D Models
TC7WZ08FK,LJ(CT - Toshiba  - 3D model - Other - SOT-765
click to zoom

TC7WZ08FK,LJ(CT Details

  • Manufacturer Part Number:

    TC7WZ08FK,LJ(CT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOT-765, 8 PIN

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    6

  • Family:

    LVC/LCX/Z

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    2.3 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    AND GATE

  • Max I(ol):

    0.032 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Inputs:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSSOP

  • Package Equivalence Code:

    TSSOP8,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    0.1 mA

  • Prop. Delay@Nom-Sup:

    6 ns

  • Propagation Delay (tpd):

    12.5 ns

  • Schmitt Trigger:

    NO

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    2 mm

TC7WZ08FK,LJ(CT Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TC7WZ08FK is 1.65V to 5.5V.
  • To properly power down the TC7WZ08FK, ensure that the input voltage is reduced to 0V and the output is in a high-impedance state.
  • The maximum allowable power dissipation for the TC7WZ08FK is 500mW.
  • To handle ESD protection for the TC7WZ08FK, ensure that the device is handled in an ESD-protected environment, and use ESD-protective packaging and handling procedures.
  • The recommended storage temperature range for the TC7WZ08FK is -40°C to 125°C.
