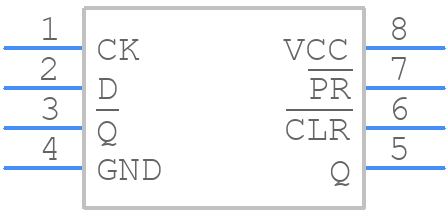

TC7WZ74FK,LXGJ - Toshiba

TC7WZ74FK,LXGJ Details

• Manufacturer Part Number:

  TC7WZ74FK,LXGJ

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  SOT-765, 8 PIN

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Toshiba America Electronic Components

• YTEOL:

  6

• Family:

  LVC/LCX/Z

• JESD-30 Code:

  R-PDSO-G8

• Length:

  2.3 mm

• Load Capacitance (CL):

  50 pF

• Logic IC Type:

  D FLIP-FLOP

• Max Frequency@Nom-Sup:

  150000000 Hz

• Max I(ol):

  0.032 A

• Number of Bits:

  1

• Number of Functions:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Polarity:

  COMPLEMENTARY

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  VSSOP

• Package Equivalence Code:

  TSSOP8,.12,20

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH

• Power Supply Current-Max (ICC):

  50 mA

• Prop. Delay@Nom-Sup:

  7 ns

• Propagation Delay (tpd):

  23 ns

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  0.9 mm

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  1.65 V

• Supply Voltage-Nom (Vsup):

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Trigger Type:

  POSITIVE EDGE

• Width:

  2 mm

• fmax-Min:

  180 MHz
