TC7WZ74FK(TE85L,F) footprint, schematic symbol and 3D model by Toshiba

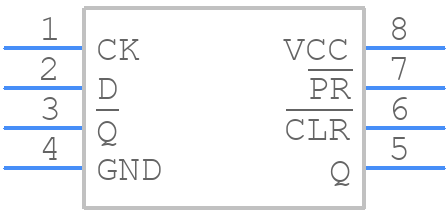

Symbol

click to zoom

PCB Footprints

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TC7WZ74FK(TE85L,F)
Part Number TC7WZ74FK(TE85L,F)
Manufacturer Toshiba
Pin Count 8
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - SSOP8-P-0.50A_1
Released Date Oct 18, 2018
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

TC7WZ74FK(TE85L,F) Details

Manufacturer Part Number:
TC7WZ74FK(TE85L,F)
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
SSOP-8
HTS Code:
8542.39.00.60
Manufacturer:
Toshiba America Electronic Components
YTEOL:
0
Family:
LVC/LCX/Z
JESD-30 Code:
R-PDSO-G8
Length:
2.3 mm
Load Capacitance (CL):
50 pF
Logic IC Type:
D FLIP-FLOP
Max Frequency@Nom-Sup:
200000000 Hz
Max I(ol):
0.024 A
Number of Bits:
1
Number of Functions:
1
Number of Terminals:
8
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Polarity:
COMPLEMENTARY
Package Body Material:
PLASTIC/EPOXY
Package Code:
VSSOP
Package Equivalence Code:
TSSOP8,.12,20
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Packing Method:
TR
Prop. Delay@Nom-Sup:
5.6 ns
Propagation Delay (tpd):
23 ns
Qualification Status:
Not Qualified
Seated Height-Max:
0.8 mm
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
1.65 V
Supply Voltage-Nom (Vsup):
3.3 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Trigger Type:
POSITIVE EDGE
Width:
2 mm
fmax-Min:
200 MHz

TC7WZ74FK(TE85L,F) Frequently Asked Questions (FAQs)

The recommended operating voltage range for the TC7WZ74FK is 1.65V to 5.5V, as specified in the datasheet. However, it's essential to note that the device can tolerate a voltage range of 1.4V to 6.0V for a short duration, but prolonged operation outside the recommended range may affect its performance and lifespan.
To ensure the TC7WZ74FK operates within its specified temperature range of -40°C to 125°C, it's crucial to provide adequate heat dissipation, especially in high-power applications. This can be achieved by using a heat sink, thermal interface material, and ensuring good airflow around the device. Additionally, consider the PCB layout and thermal design to minimize thermal resistance.
The maximum current rating for the TC7WZ74FK is not explicitly stated in the datasheet. However, based on the device's power dissipation rating and thermal characteristics, it's recommended to limit the current to 20mA per pin to ensure reliable operation and prevent overheating.
While the TC7WZ74FK is a high-speed device, its frequency response is limited to around 100MHz. For high-frequency applications above 100MHz, it's recommended to consider alternative devices specifically designed for high-frequency operation, such as those with a higher transition frequency (ft) or specialized high-frequency logic families.
To handle ESD protection for the TC7WZ74FK, it's essential to follow proper handling and storage procedures, such as using anti-static wrist straps, mats, and bags. Additionally, consider adding external ESD protection devices, such as TVS diodes or ESD protection arrays, to the PCB design to protect the device from electrostatic discharge.
