TC8-1+ - Mini-Circuits

Description: Audio Transformers / Signal Transformers TC XFMR / SURF MOUNT / RoHS , 2 MHz to 500 MHz , 50 Ohms , -20C to +85C

Download TC8-1+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

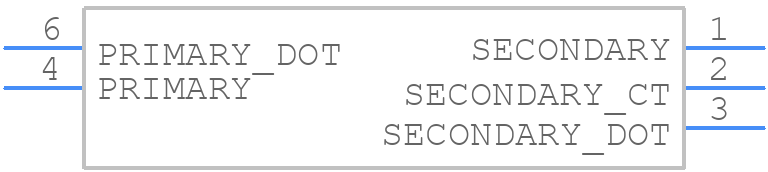

TC8-1+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
TC8-1+ - Mini-Circuits PCB footprint - Other - Other - AT224-1-A_2024-1
click to zoom
3D Models
TC8-1+ - Mini-Circuits - 3D model - Other - AT224-1-A_2024-1
click to zoom

TC8-1+ Details

  • Manufacturer Part Number:

    TC8-1+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    5.5

  • Cut-off Frequency-Min:

    2 MHz

  • Height:

    4.06 mm

  • Insertion Loss:

    3 dB

  • JESD-609 Code:

    e3

  • Length:

    3.81 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Packing Method:

    TR, 7/13 INCH

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    3.81 mm

TC8-1+ Frequently Asked Questions (FAQs)

  • The TC8-1+ can operate from -40°C to +85°C, but it's recommended to derate the power handling by 1 dB for every 10°C above 50°C.
  • The TC8-1+ has a nominal impedance of 50 ohms. To impedance match, use a pi-network or a T-network with capacitors and inductors to achieve a conjugate match. Consult the Mini-Circuits application note AN-60-1 for more information.
  • The TC8-1+ can handle up to +20 dBm (100 mW) of input power. Exceeding this may cause damage to the device.
  • Yes, the TC8-1+ can be used in switching applications, but it's essential to ensure that the switching frequency is within the device's bandwidth (DC to 8 GHz). Additionally, consider the device's settling time and potential for oscillations.
  • To minimize the noise figure, ensure that the input and output are properly matched, and the device is operated within its recommended operating conditions. Additionally, consider using a low-noise amplifier or a noise-matching network.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TC8-1+ Overview

Use the download button to access the TC8-1+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TC8-1, or try a keyword search, such as RF Transformers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
