TC9593XBG - Toshiba

TC9593XBG Details

• Manufacturer Part Number:

  TC9593XBG

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

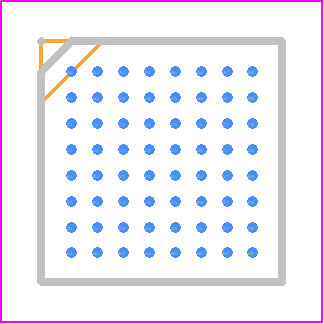

• Package Description:

  VFBGA-64

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Toshiba America Electronic Components

• Interface IC Type:

  INTERFACE CIRCUIT

• JESD-30 Code:

  S-PBGA-B64

• Length:

  6 mm

• Number of Functions:

  1

• Number of Terminals:

  64

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  VFBGA

• Package Equivalence Code:

  BGA64,8X8,25

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, VERY THIN PROFILE, FINE PITCH

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  1 mm

• Supply Voltage-Max:

  1.3 V

• Supply Voltage-Min:

  1.1 V

• Supply Voltage-Nom:

  1.2 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Form:

  BALL

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  BOTTOM

• Width:

  6 mm
