A good PCB layout for the TCA1116PWR involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power source. Additionally, using a shielded inductor and placing it away from sensitive analog circuits can help reduce EMI.
The inductor value depends on the input voltage, output voltage, and switching frequency. A general rule of thumb is to choose an inductor with a value between 1-10uH. TI provides an inductor selection guide in the datasheet, and online tools like the TI Power Stage Designer can also help with inductor selection.
The maximum ambient temperature for the TCA1116PWR is 85°C. However, the device can operate up to 125°C junction temperature. It's essential to ensure proper thermal design and heat sinking to maintain a safe operating temperature.
Yes, the TCA1116PWR is suitable for high-reliability applications. It's built with a robust design and has undergone rigorous testing to ensure high reliability. However, it's essential to follow proper design and manufacturing guidelines to ensure the device operates within its specified parameters.
To troubleshoot issues with the TCA1116PWR, start by checking the input voltage, output voltage, and current. Verify that the device is properly soldered and that the PCB layout is correct. Use an oscilloscope to check for switching noise, and ensure that the device is operating within its specified parameters. TI also provides a troubleshooting guide in the datasheet.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TCA1116PWR Overview

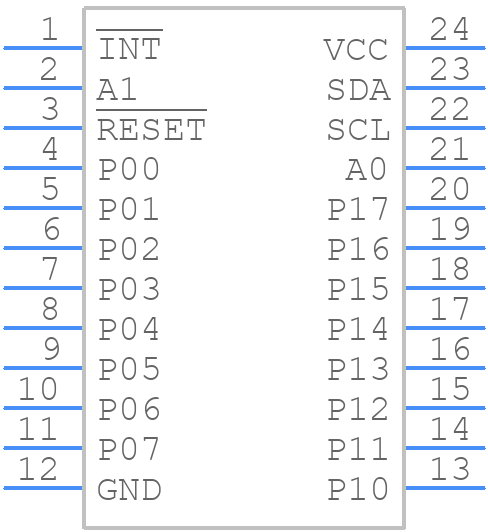

Use the download button to access the TCA1116PWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCA11,
or try a keyword search, such as Parallel IO Ports
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
