TCA4311DGKR - Texas Instruments

Description: Buffer, Accelerator 1 Channel 8-VSSOP 2.7-V to 5.5-V,10 pF,5.1mA -40°C ~ 85°C

Download TCA4311DGKR Model

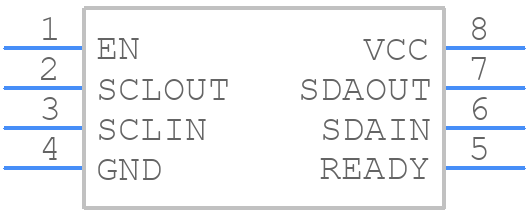

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TCA4311DGKR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGK0008A
click to zoom
3D Models
TCA4311DGKR - Texas Instruments  - 3D model - Small Outline Packages - DGK0008A
click to zoom

TCA4311DGKR Details

  • Manufacturer Part Number:

    TCA4311DGKR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    MSOP

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Interface IC Type:

    BUS BUFFERS

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TCA4311DGKR Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TCA4311DGKR is 2.7V to 5.5V, although it can tolerate up to 6V for short periods.
  • To ensure proper power-up and initialization, apply a stable voltage supply, and then assert the EN (enable) pin high. Wait for the internal power-on reset (POR) to complete, which takes approximately 10ms.
  • The maximum current rating for the TCA4311DGKR's output drivers is 20mA per pin, with a total current limit of 100mA for all outputs combined.
  • To configure the TCA4311DGKR for I2C or SMBus operation, connect the SCL (clock) pin to the clock signal, and the SDA (data) pin to the data signal. For I2C, use pull-up resistors on both SCL and SDA. For SMBus, use a pull-up resistor only on the SCL pin.
  • The internal pull-up resistors on the TCA4311DGKR are used to pull up the SCL and SDA pins to the supply voltage (VCC) when the device is in a bus-free state, ensuring proper bus idle conditions.
