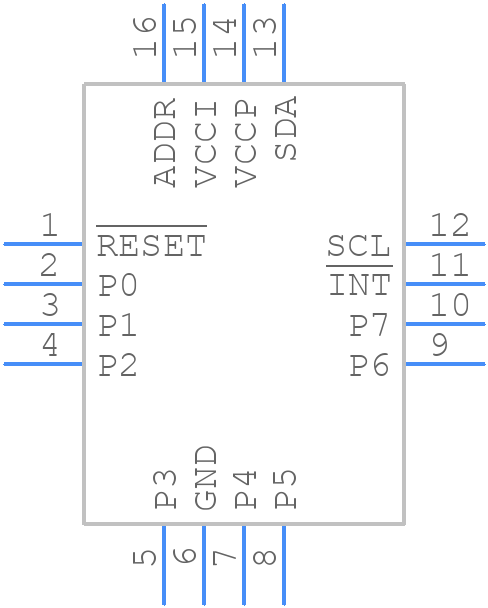

TCA6408ARSVR - Texas Instruments

TCA6408ARSVR Details

• Manufacturer Part Number:

  TCA6408ARSVR

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  QFN

• Pin Count:

  16

• Country Of Origin:

  Mainland China, Thailand

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Address Bus Width:

  2

• Clock Frequency-Max:

  0.4 MHz

• JESD-30 Code:

  R-PQCC-N16

• JESD-609 Code:

  e4

• Length:

  2.6 mm

• Moisture Sensitivity Level:

  1

• Number of Bits:

  8

• Number of I/O Lines:

  8

• Number of Ports:

  1

• Number of Terminals:

  16

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  VQCCN

• Package Equivalence Code:

  LCC16,.07X.1,16

• Package Shape:

  RECTANGULAR

• Package Style:

  CHIP CARRIER, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  0.55 mm

• Supply Current-Max:

  0.02 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  1.65 V

• Supply Voltage-Nom:

  1.8 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.4 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  1.8 mm

• uPs/uCs/Peripheral ICs Type:

  PARALLEL IO PORT, GENERAL PURPOSE
