- Part Number TCA6408PW
- Manufacturer Texas Instruments
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - PW0016A
- Released Date Apr 13, 2015
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TCA6408PW Details
-
Manufacturer Part Number:
TCA6408PW
-
Brand Name:
Texas Instruments
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
TSSOP
-
Package Description:
GREEN, PLASTIC, TSSOP-16
-
Pin Count:
16
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Texas Instruments
TCA6408PW Frequently Asked Questions (FAQs)
-
The TCA6408PW can support I2C clock frequencies up to 400 kHz, but it's recommended to limit it to 100 kHz for reliable operation.
-
The TCA6408PW has an internal POR circuit that resets the device during power-up. To handle POR, ensure that the VCC pin is powered up monotonically and that the I2C bus is not driven during power-up. Also, wait for at least 1 ms after power-up before initiating I2C communication.
-
The recommended pull-up resistor value for the I2C bus is between 1 kΩ and 10 kΩ, depending on the bus capacitance and operating frequency. A higher value may be required for longer buses or higher frequencies.
-
Yes, the TCA6408PW can be used as a level translator between 3.3V and 5V logic levels. However, ensure that the VCC pin is connected to the higher voltage level (5V) and that the input signals are within the recommended input voltage range.
-
The TCA6408PW has a thermal shutdown feature that disables the device when the junction temperature exceeds 150°C. To handle thermal shutdown, ensure good thermal design and heat dissipation, and monitor the device temperature using an external temperature sensor if necessary.
Trust Checks
Community Provided
System Verified
Community Approved
TCA6408PW Overview

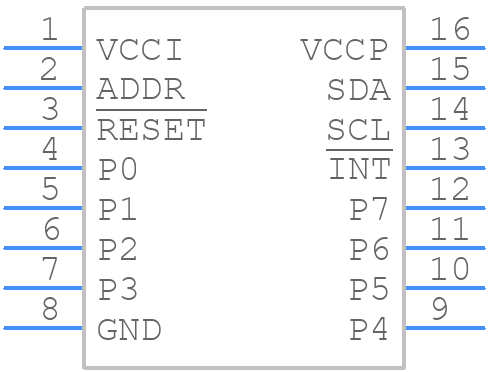

Use the download button to access the TCA6408PW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TCA64,
or try a keyword search, such as Parallel IO Ports
